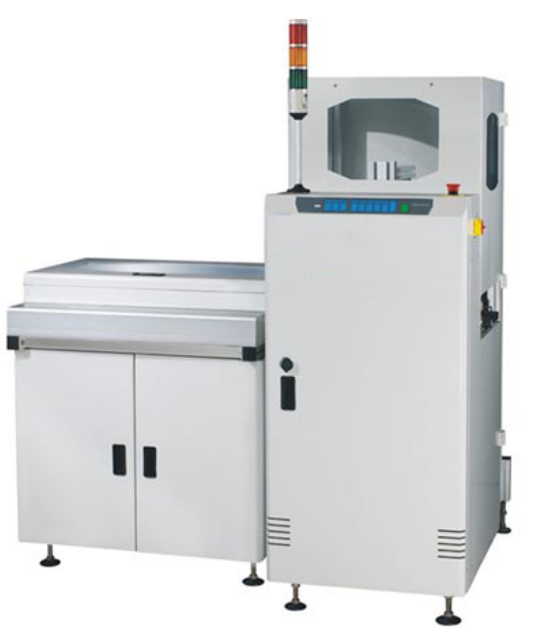

Magazine type buffer conveyor
Magazine type buffer conveyor
Board handing system conveyor serial
Description
This unit is used for storage the NG board and flow to the up lever for inspection after the tester(AOI/SPI)
Features
PCB Magazine Type Buffer Technical Parameters
Description: This Device Used For Receiving NG Board Or Memory Board
No.Of Magazine: Upper Conveyor: 1 Magazine; Lower Conveyor:2 Magazine
Indexing Pitch: 10.20.30.40mm Or Specify
Power Source: AC 110 Volts Or 220 Volts; Single Phase
Power Consumption: Max 250VA
Air Pressure & Air Consumption: 4-6bar, 15ltr/Min
Transport Height: 900±20MM
Transport Direction: From Left To Right Or Right To Left
Specifications
|
Model |
Dimension (L*W*H.MM) | Effection PCB size | Weight(KG) | Rack size(L*W*H.MM) |
|
LBM250 |
1150*1150*1205 | 50*50-330*250 | 160KG | 355*320*563 |
|
LBM330 |
1350*1350*1205 | 50*50-445*330 | 220KG |
460*400*563 |
| LBM390 | 1550*1550*1205 | 50*50-530*390 | 280KG |
535*460*563 |
| LBM460 | 1750x1750x1205 | 50×50-530×460 | 340KG |
535*530*563 |

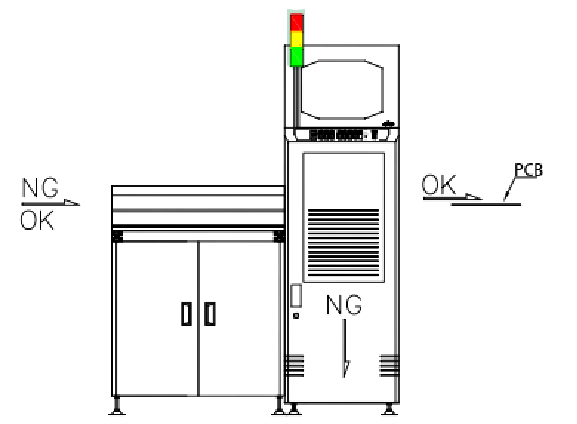

Schematic
Share to:
Magazine type buffer conveyor
Board handing system conveyor serial
Description
This unit is used for storage the NG board and flow to the up lever for inspection after the tester(AOI/SPI)
Features
PCB Magazine Type Buffer Technical Parameters
Description: This Device Used For Receiving NG Board Or Memory Board
No.Of Magazine: Upper Conveyor: 1 Magazine; Lower Conveyor:2 Magazine
Indexing Pitch: 10.20.30.40mm Or Specify
Power Source: AC 110 Volts Or 220 Volts; Single Phase
Power Consumption: Max 250VA
Air Pressure & Air Consumption: 4-6bar, 15ltr/Min
Transport Height: 900±20MM
Transport Direction: From Left To Right Or Right To Left
Specifications
|
Model |
Dimension (L*W*H.MM) | Effection PCB size | Weight(KG) | Rack size(L*W*H.MM) |
|
LBM250 |
1150*1150*1205 | 50*50-330*250 | 160KG | 355*320*563 |
|
LBM330 |
1350*1350*1205 | 50*50-445*330 | 220KG |
460*400*563 |
| LBM390 | 1550*1550*1205 | 50*50-530*390 | 280KG |
535*460*563 |
| LBM460 | 1750x1750x1205 | 50×50-530×460 | 340KG |
535*530*563 |
Schematic
