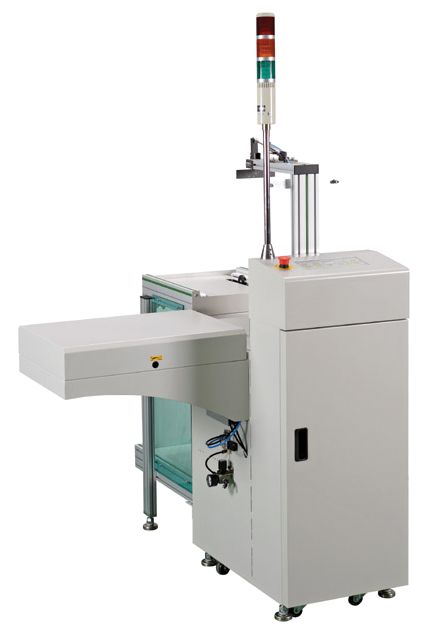

L type magazine loader
L type magazine loader
Board handing system loader serial
Description
This unit is used for loading or of PCBs.
Features
Specially use in limited workshop
Sturdy and stable design
User friendly ‘soft touch’ LED membrane control panel
Pneumatic clamps provided for magazine alignment
Pneumatic pusher’s pressure regulated
High throughput with short magazine change-over time
SMEMA compatible
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Rack size(L*W*H.MM) |
|
LLF250 |
1150*1150*1250 | 50*50-330*250 | 160KG | 355*320*563 |
| LLF330 | 1350*1350*1250 | 50*50-445*330 | 220KG |
460*400*563 |
| LLF390 | 1550*1550*1250 | 50*50-530*390 | 280KG |
535*460*563 |

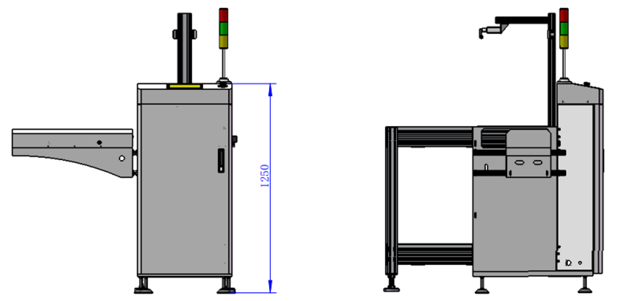

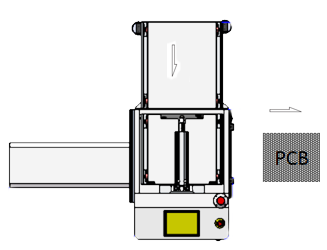

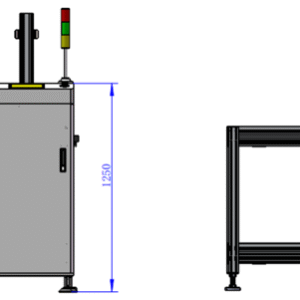

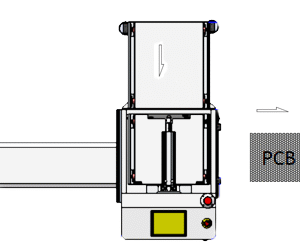

Schematic&Structure
