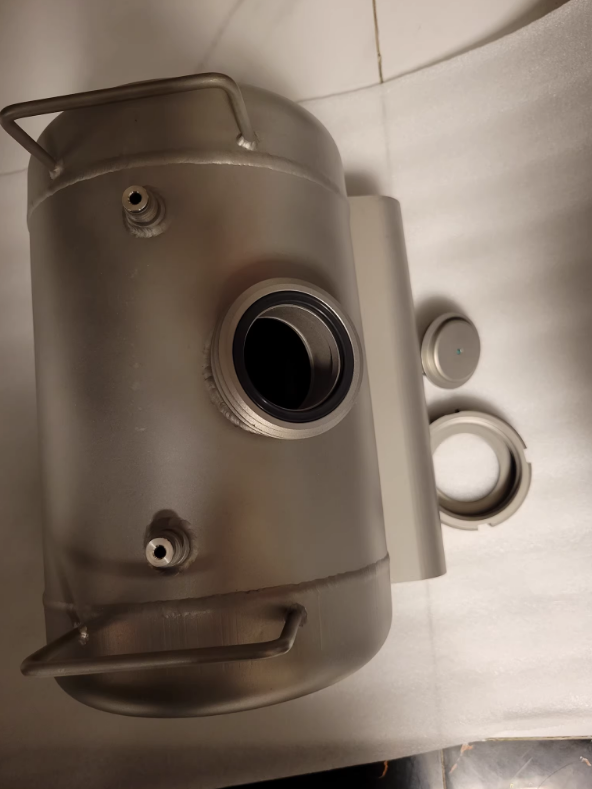

ITW Vitronics Soltec Flux Can

I. Applicable Models

Selective Soldering: ZEVAm+, mySelective 6748, ZEi/A Series

Wave Soldering: Delta 5, Delta X Series

High-Frequency Spray/Spray Flux System

II. Structure and Function (Standard Configuration)

Main Tank + Refill Tank (Dual Tank Design)

Main Tank: Equipped with a level sensor/weighing module, low level alarm, and automatic refill.

Refill Tank: Automatic refilling during production without stopping the machine, increasing capacity.

Pressure Control: Constant air pressure (approximately 400 mbar) drives flux delivery.

High-Precision Flow Meter: Low flow monitoring (<1 µl/min), precise control of spray volume.

Filtration System: Prevents nozzle clogging (compatible with 180 µm spray orifice).

Material: PP/PE corrosion-resistant plastic or stainless steel, compatible with no-wash, lead-free, and water-based fluxes.

Capacity: Commonly 0.5L–2L (depending on model)

III. Key Features

Stable Feeding: Closed-loop control, level/pressure/ Flow monitoring throughout the process
Anti-bubble and anti-sedimentation: Reduces uneven spraying and missed areas
Quick changeover and easy cleaning: Compatible with various flux switching options
N₂ seal optional: Anti-oxidation, extends flux life

IV. Model and Procurement (Original/Replacement)
Original parts: Order through ITW EAE distributors, with complete PN (e.g., 6748 series spare parts)
Accessories: Level sensor, pressure regulating valve, filter element, seals

V. Common Problems and Maintenance
Leakage: Replace seals, check joints
Inaccurate level: Clean/calibrate sensor
Clogged nozzles: Replace filter elements regularly, clean with a special cleaning agent
Unstable feed: Check air pressure, exhaust, pump/valve

VI. Information You Need to Provide (Precise Matching)
Equipment model (e.g., ZEVAm+ / mySelective 6748), part number
Capacity, interface size, material (PP / stainless steel)
Single tank / double tank, whether with weighing/level indicator, N₂ interface
