High-end reject conveyor
High-end reject conveyor
Board handing system conveyor serial
Description

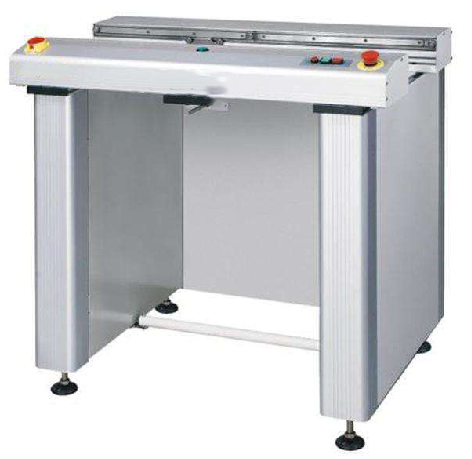

This unit is used for faulty boards which can be lifted up for visual inspection without interrupting the PCBs flow.
Features
Modular design User friendly ‘soft touch’ LED membrane control panel Includes 3 modes: ‘reject’, ‘inspect’ and ‘pass through‘ modes Stability enhanced by ‘robust design’ Ergonomically designed arm rest Smooth and parallel width adjustment Different lengths available upon request Variable speed control SMEMA compatible.
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Remark |
|
LRH-350C |
500*665*900 | 50*50-445*350 | 50KG | no Lighting |
|
LRH-460C |
500*795*900 | 50*50-460*460 | 70KG |
no Lighting |
| LRH-350D | 1000*665*900 | 50*50-445*350 | 80KG |
no Lighting |
| LRH-460D | 1000*795*900 | 50*50-460*460 | 90KG |
no Lighting |

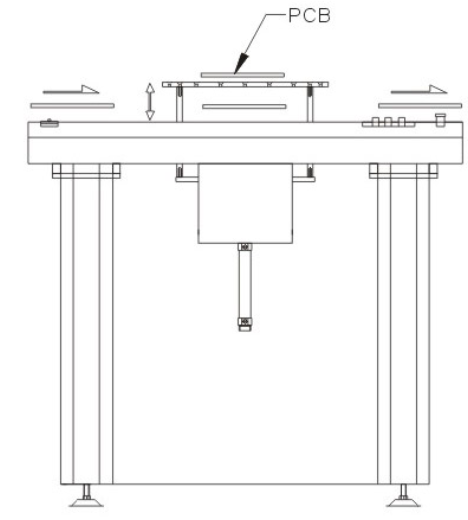

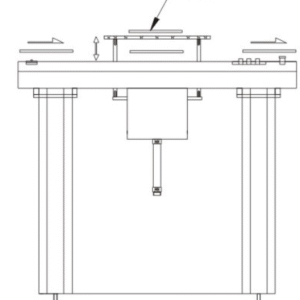

Schematic
