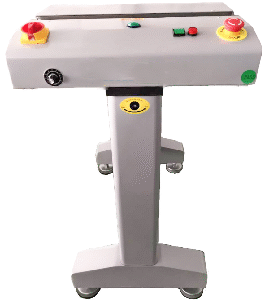

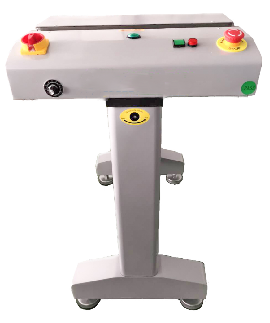

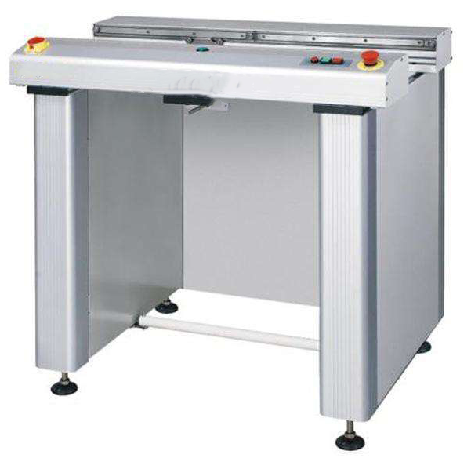

High-end linking conveyor
High-end linking conveyor
Board handing system conveyor serial
Description
This unit is used to link between production machine or board handing units.
Features
Increase the use of special thick aluminum Accurate and durable stainless steellaser cutting edge oriented Smooth parallel to the width of the screw adjustment nethld Strengthening the structural design to improve the stability of the equipment Anti-static flat belt use 3mm SMEMA compatible.
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Remark |
|
LH-407C |
500*676*900 | 50*50-445*407 | 45KG | no Lighting |
|
LH-460C |
500*786*900 | 50*50-460*460 | 50KG |
no Lighting |
| LH-407D | 1000*676*900 | 50*50-445*407 | 75KG |
no Lighting |
| LH-460D | 1000*786*900 | 50*50-460*460 | 85KG |
no Lighting |
Options
Anti-dust Covers Touch screen High-Clearance on request Cooling fans on top/bottom for after-reflow Light system for better inspection Support for Monitor Shelf with ESD component boxes Motorized/Automatic width adjustment Choice of different belt width and chain transport system Mechanical stopper Foot pedal pass control Narrow footprint With bottom cabinet

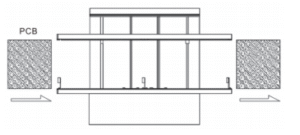

Schematic
