Hand door conveyor
Hand door conveyor
Board handing system conveyor serial

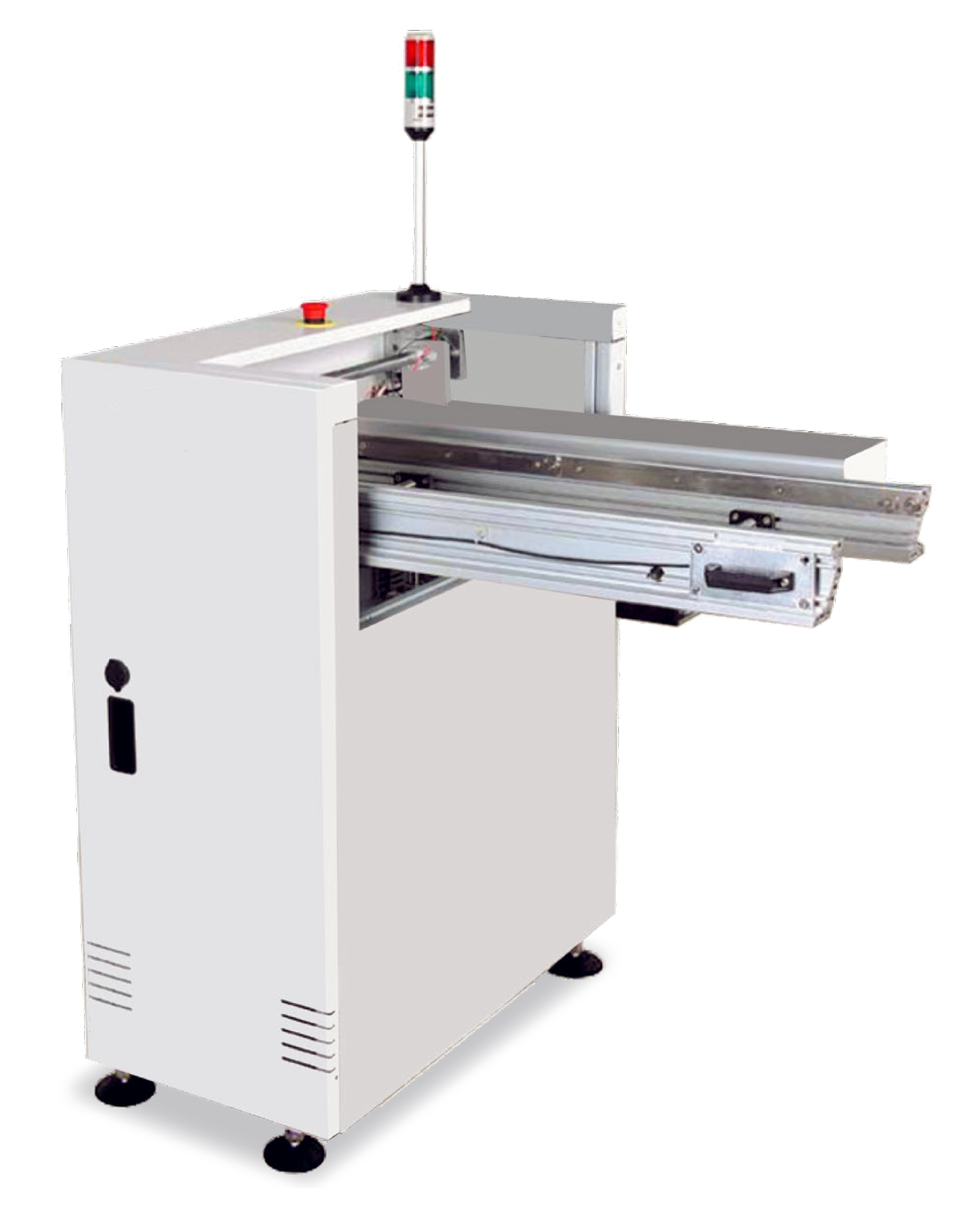

Description
By manual lifting the conveyor section, access is gained to the rear of the line.
Features
Lowering and lifting of gate conveyor.(Push bottons control)
PLC Program control.
Locking cylinder to avoid opening during PCB transfer.
Ergonomic air pressure supported opening and closing.
Automatically gate lifting down by push button.
Parallel and smooth width adjustment.(lead screw)
SMEMA compatible.
Transport height:910mm ±20mm
Belt type: ESD flat belt
Power supply: AC110 V , or 220V, single phase,Max 100V
Air supply:4-6 bar, 48ltr/min max
Load bearing:1.5kg/PCB
Specifications
|
Model |
Dimension (L*W*H.MM) | Effection PCB size | Weight(KG) | Remark |
|
LGC330 |
1000*730*1050 | 50*50-445*400 | 180KG | |
| LGC460 | 1000*860*1050 | 50*50-530*460 | 200KG |

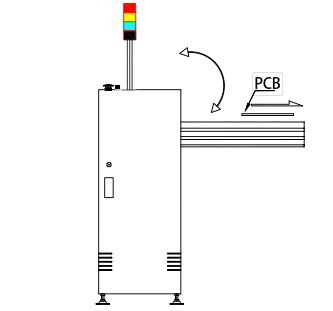

Schematic
