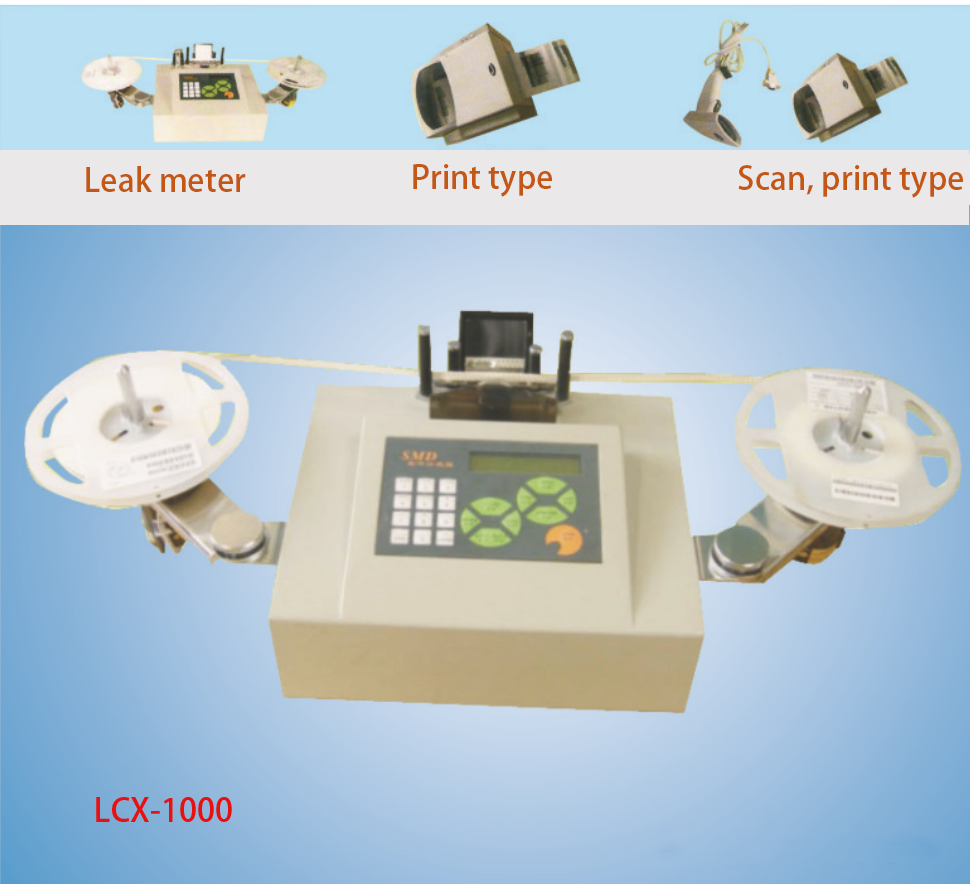

Fully Automatic SMD Parts Counter LCX-1000
Tape feeder (RELL) diameter: Suitable for any size. Tape Width (WIDTH): 8, 12, 16, 24, 32, 44, 56 mm
Pitch (PITCH): 2, 4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56 mm
Power Supply: AC 220V (50Hz)
Rated Power: Approximately 12W
Counting Quantity: 1-50,000 PCS
Dimensions: 450 (L) * 270 (W) * 180 (H) mm
Weight: 7 kg
Share to:
Fully Automatic SMD Parts Counter LCX-1000
Specs
Fully automatically counts parts, facilitating counting and delivery.
Unique design prevents tape from falling off.
Counts in both forward and reverse directions, with preset quantities.
Features a large, circular LCD display with backlight for easy reading.
Patented reflective lens and user-friendly operating platform.
Optionally equipped with a marking machine for convenient management.
Optionally equipped with a missing part detection device for precise counting and zero error.
Features:
Compatible with all SMD tape components.
Tape feeder (RELL) diameter: Suitable for any size. Tape Width (WIDTH): 8, 12, 16, 24, 32, 44, 56 mm
Pitch (PITCH): 2, 4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56 mm
Power Supply: AC 220V (50Hz)
Rated Power: Approximately 12W
Counting Quantity: 1-50,000 PCS
Dimensions: 450 (L) * 270 (W) * 180 (H) mm
Weight: 7 kg
