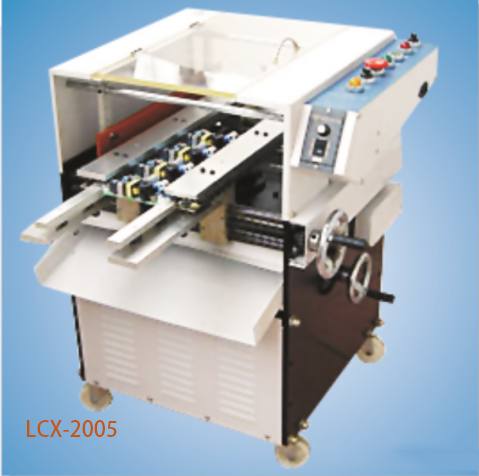

Fully Automatic PC Board Pin Cutting Machine LCX-2005

Fully Automatic PC Board Pin Cutting Machine LCX-2005

Fully Automatic PC Board Pin Cutting Machine LCX-2005
Specifications:
Power Supply: AC220V 60Hz/50Hz
Motor: Spindle 1HP
Dimensions: L750 x W600 x H860
Speed: 0-2mm/min
Weight: 90kg
Dimensions: W250 x H500 (maximum)
Features: Claw-type spring clamps, automatic feeding, and high stability. Compatible with production lines and automatic soldering furnaces. Adjustable track speed based on component pin thickness, extending tool life. Track-type claws clamp the PC board and push it forward from the back, providing strong and stable thrust. Equipped with a push rod and bakelite pressure plate to prevent deformation after soldering. Maximum PC board cutting size: 250 x 500 mm.

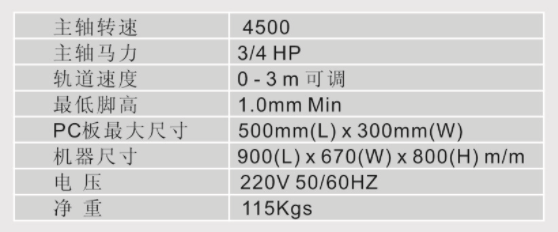

Spindle speed 4500 rpm
Spindle horsepower 3/4 HP
Track speed adjustable from 0-3 m (1.5-1.5 ft)
Minimum foot height 1.0 mm (min)
Maximum PC board size 500 mm (L) x 300 mm (W)
Machine dimensions 900 mm (L) x 670 mm (W) x 800 mm (H)
Voltage 220V 50/160 Hz
Net weight 115 kg
