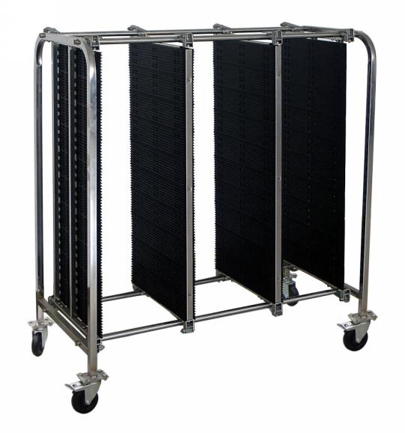

ESD MAGAZINE ESD PCB Plates Trolley
Model:K6601
Size (L×W×H)mm：900×550×1300
Size (L×W×H)mm：1200×550×1300

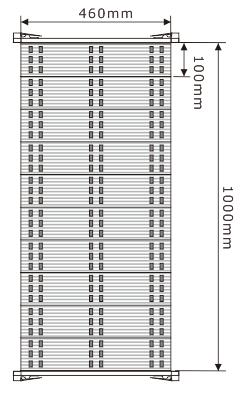

Slot of Side plate (W×H)：100cm×46cm
Width：5mm
Depth：4mm
Pitch：10mm
Side Plate：Ten Pieces Assembled
Flapper Size：10cm×46cm
1. Side Plate: Sideboard is formed by 10 pcs small panels.
2. One standard trolley is with 2 pcs single-side flashabord, 2 pcs double-side
flashboard. It can be added extra double-sideboard flashboard as per actual need .
3. One standard trolley ‘s Each column insert 100 pcs PCB, Total store 300 pcs PCB.
4. System Resistance: Dissipative Type 1E6Ω~1E9Ω
Share to:
CUSTOM ESD MAGAZINE
ESD MAGAZINE

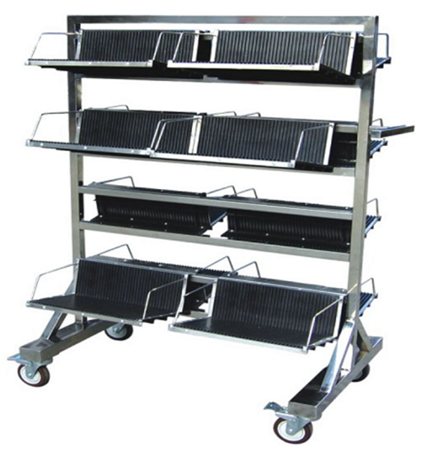

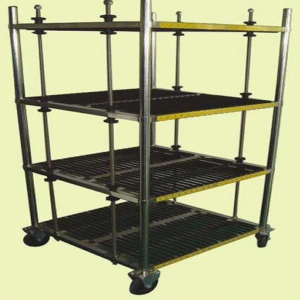

ESD PCB Plates Trolley
Model:L6601
Material:Stainless steel & Antistatic Plastic/Carbon fiber PC
Size:1100*600*1400mm or customised
Storage capability: 38 pcs per basket (38*8=304PCB)
Surface resistance:≤106Ω
Shock absorption system is opotio
Model:K6601
Size (L×W×H)mm：900×550×1300
Size (L×W×H)mm：1200×550×1300
Slot of Side plate (W×H)：100cm×46cm
Width：5mm
Depth：4mm
Pitch：10mm
Side Plate：Ten Pieces Assembled
Flapper Size：10cm×46cm
Note:
1. Side Plate: Sideboard is formed by 10 pcs small panels.
2. One standard trolley is with 2 pcs single-side flashabord, 2 pcs double-side
flashboard. It can be added extra double-sideboard flashboard as per actual need .
3. One standard trolley ‘s Each column insert 100 pcs PCB, Total store 300 pcs PCB.
4. System Resistance: Dissipative Type 1E6Ω~1E9Ω
|

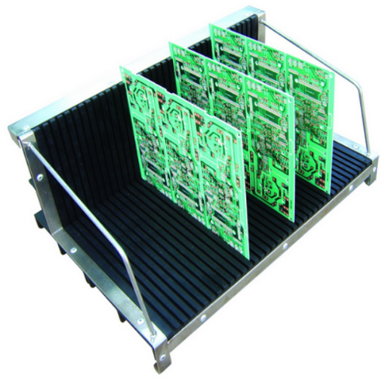

Model |

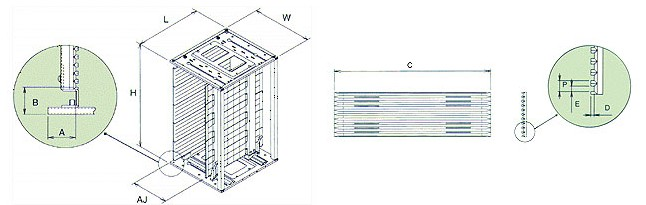

Ref Position(mm) | weight | Gard guide(mm) | Outline Dimension(mm) | Heat-resistan Temperature | PCB Size(mm) | price | ||||||||
| A | B | C | D | E | P | L | W | H | AJ | pcs | |||||
| L8801 | 34 | 34 | 6KG | 355 | 3.5 | 5 | 10 | 355 | 320 | 563 | 85℃ | 120℃ | 220℃ | 50-250 | |
| L8802 | 34 | 34 | 8.8KG | 460 | 3.5 | 5 | 10 | 460 | 400 | 563 | 85℃ | 120℃ | 220℃ | 50-330 | |
| L8803 | 34 | 37 | 10.5KG | 535 | 4 | 5 | 10 | 535 | 460 | 570 | 85℃ | 120℃ | 220℃ | 50-400 | |
| L8804 | 34 | 37 | 13KG | 535 | 4 | 5 | 10 | 535 | 530 | 570 | 85℃ | 120℃ | 220℃ | 50-460 | |
