Custom SMT Special Shaped Pick and Place Nozzle

SMT Irregularly Shaped Nozzles (Professionally Customized)

1. Custom SMT Special Shaped Pick and Place Nozzle
2. Non-standard Custom SMT Vacuum Nozzle for Irregular Components
3. CNC Custom SMT Special Nozzle with Spring Buffer

These are non-standard, irregularly shaped vacuum nozzles for SMT pick-and-place machines, used to pick up irregularly shaped components that standard nozzles cannot hold. They are widely used in pick-and-place machines from various brands such as YAMAHA, Fuji, NXT, JUKI, Samsung, and Panasonic.

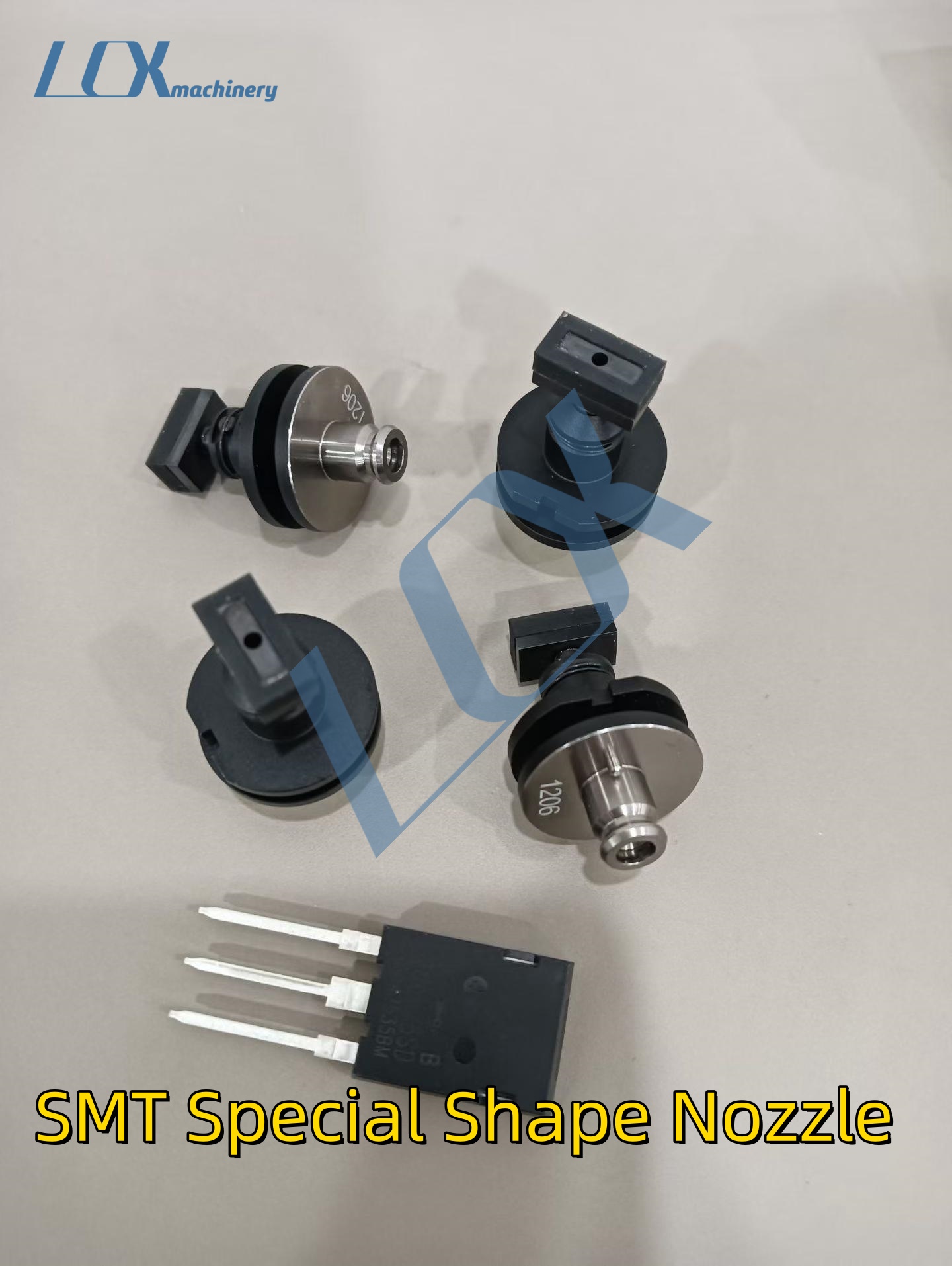

✅ Compatible Component Types (as shown in the image)

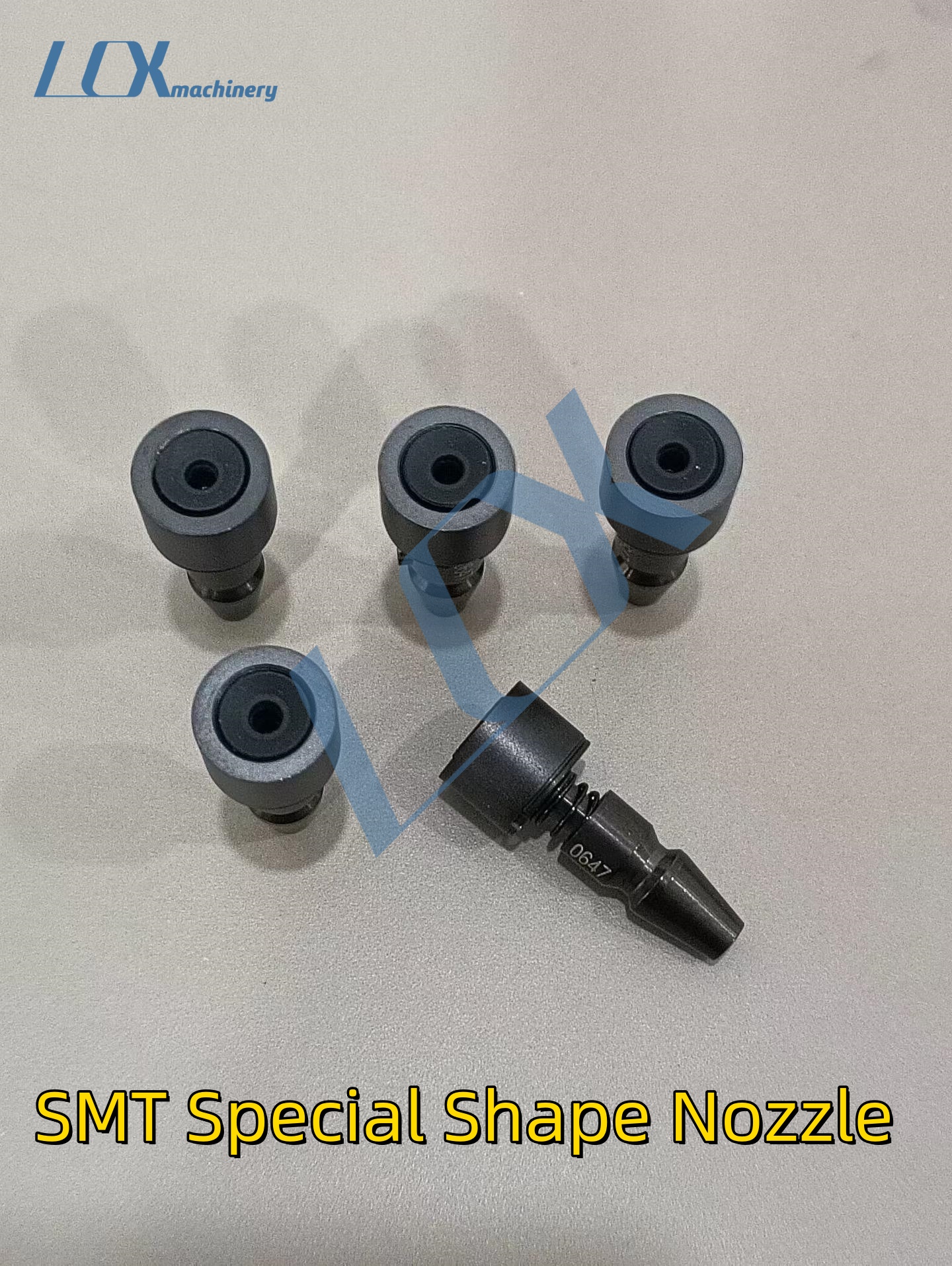

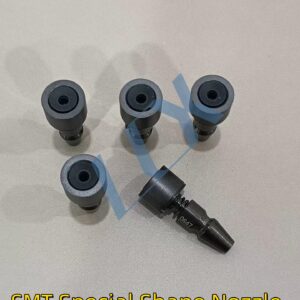

1. Round Rubber Tip (0647): Small cylindrical/micro-devices, small terminals

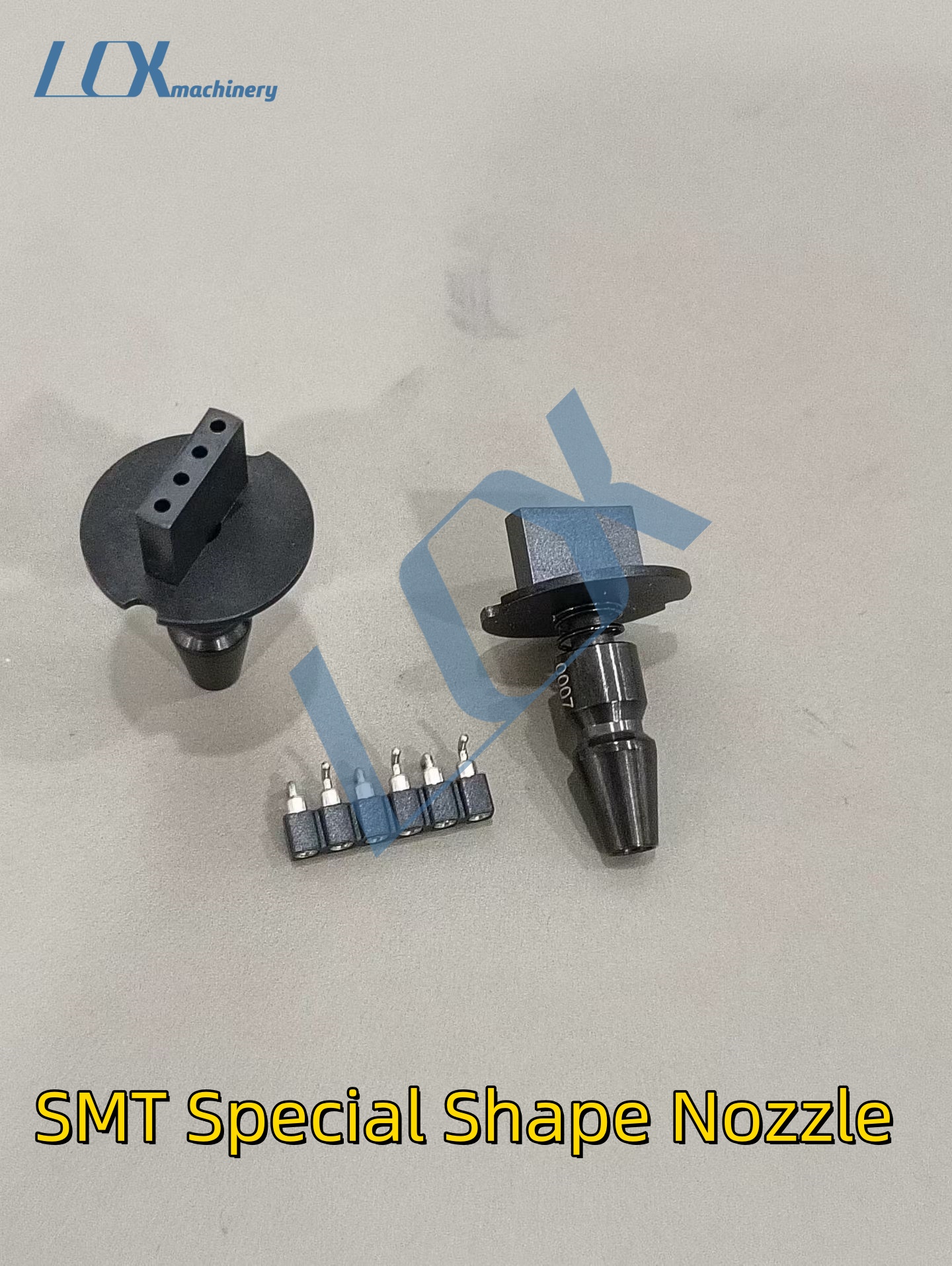

2. Multi-pin Nozzle (0007): Multi-pin headers, multi-pin connectors

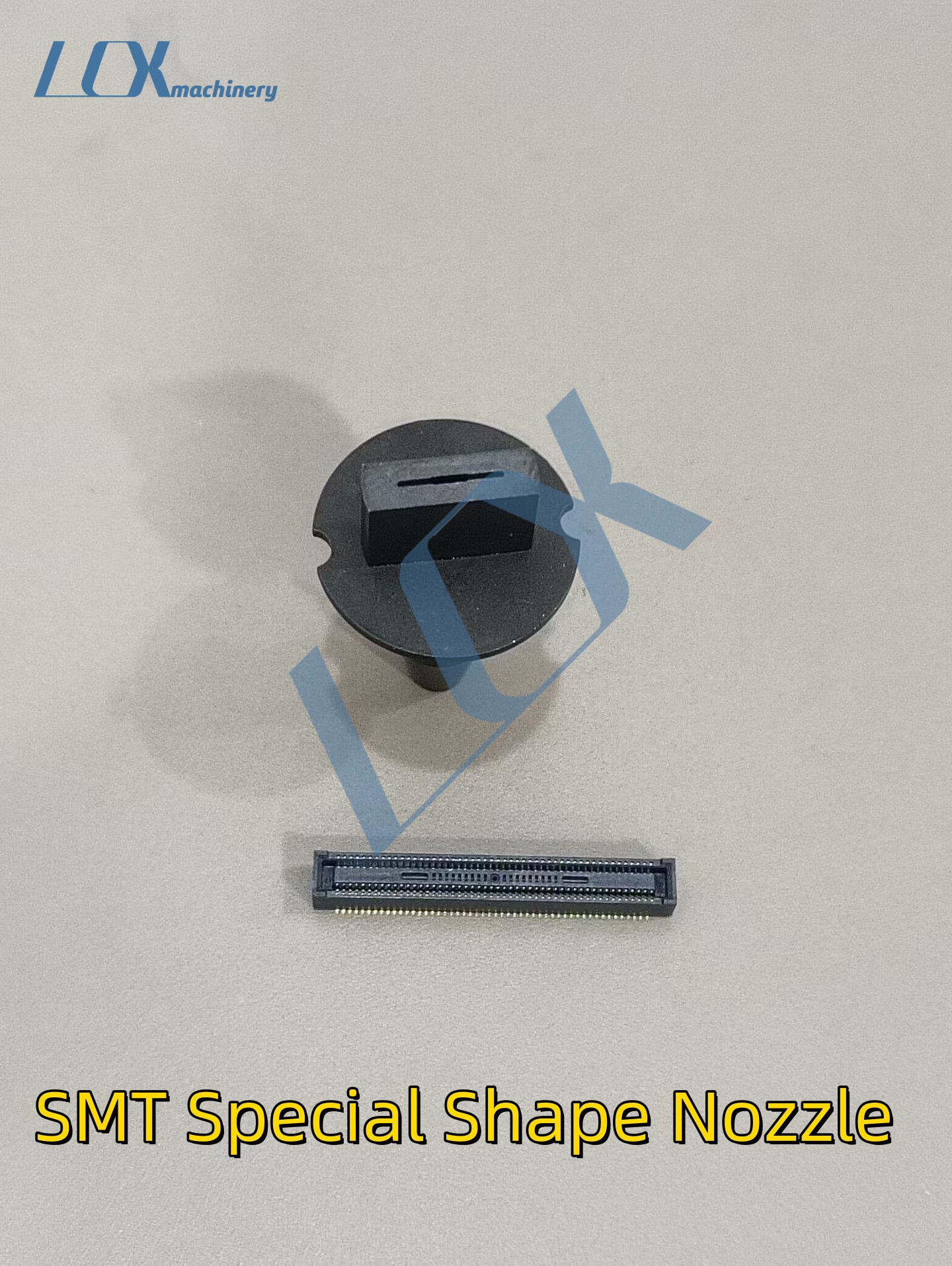

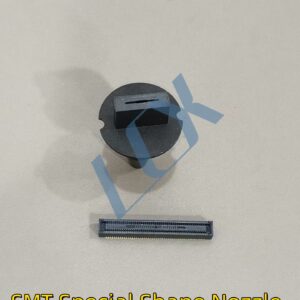

3. Long Slot Nozzle: Long female headers, long strip connectors

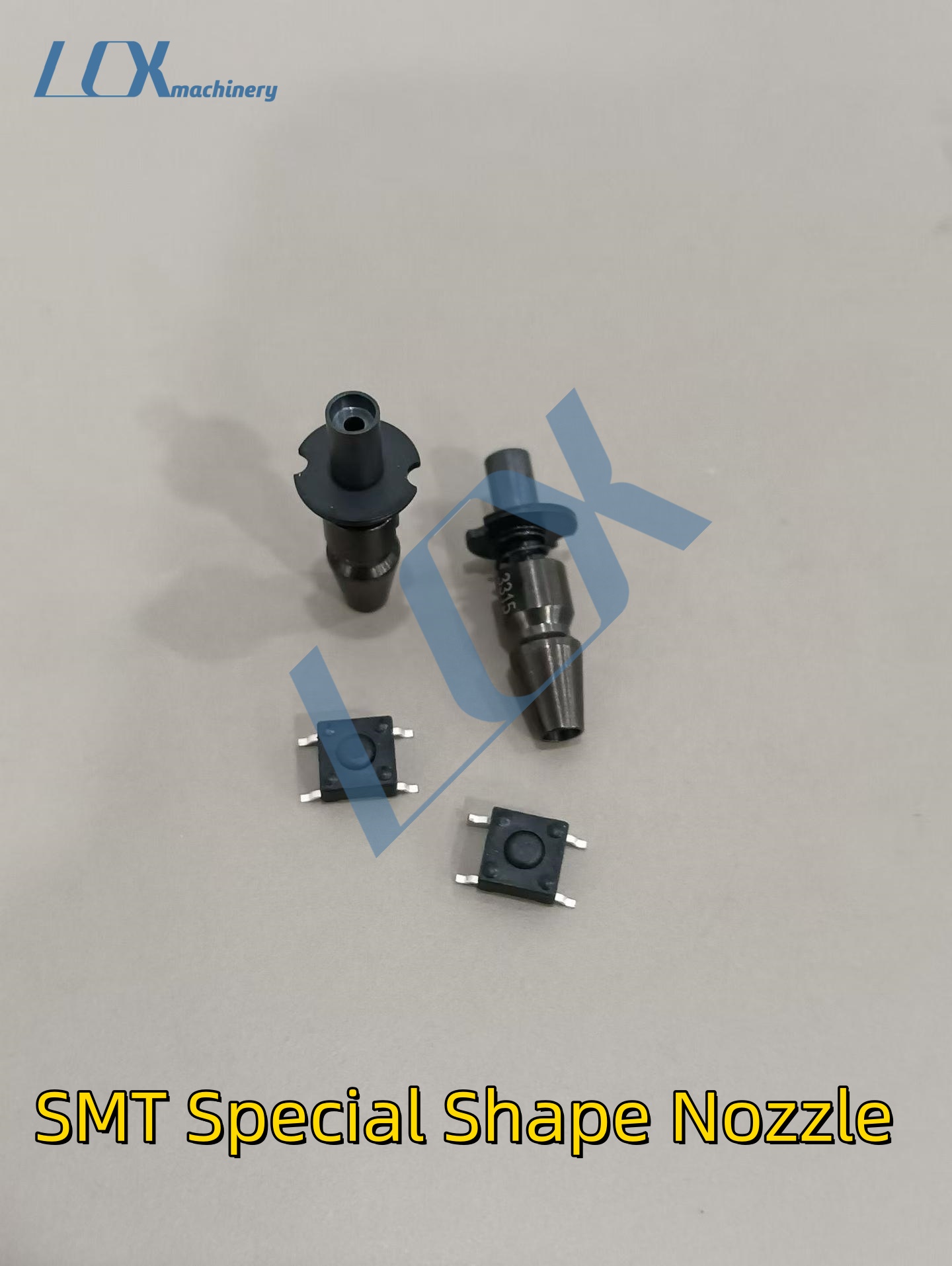

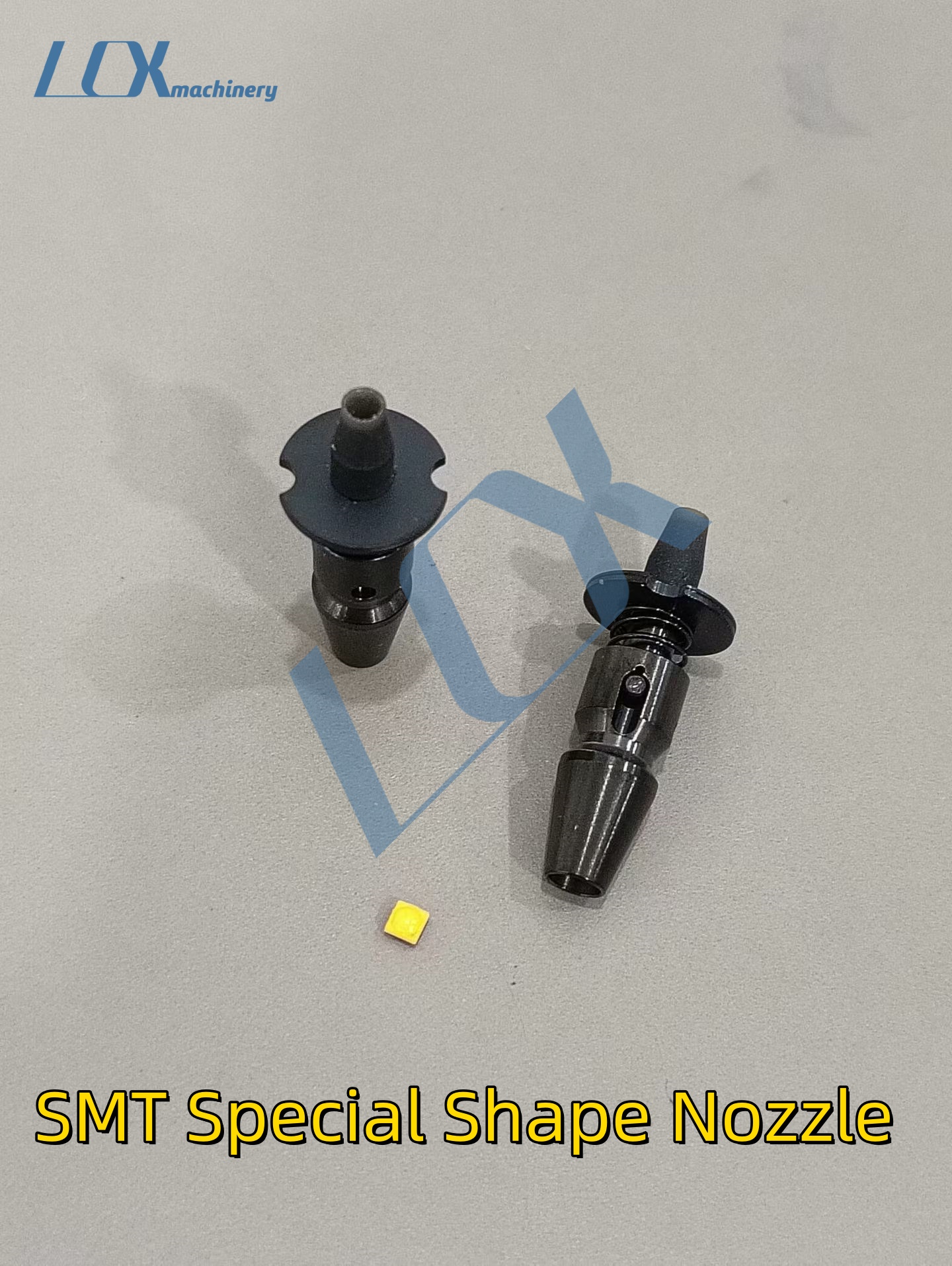

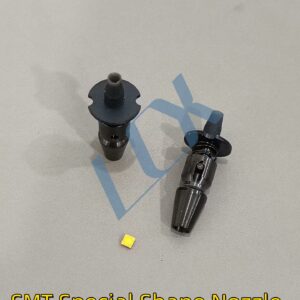

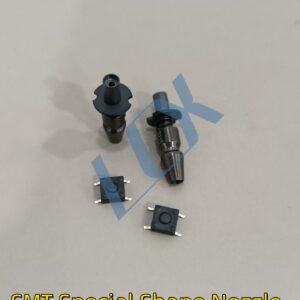

4. Small Square Nozzle: LED square lights, surface mount tactile switches

5. Large Square Nozzle: High-power TO packaged transistors, large-size power devices

✨ Customized Core Features

– Material: Body **stainless steel**, head wear-resistant rubber/PU/ceramic optional, wear-resistant, cushioning to prevent component damage

– Structure: Built-in spring buffer structure, placement buffer, avoids damage to chips and connectors

– Vacuum Holes: Irregularly shaped holes (multi-hole, long slot, multi-pin hole) designed according to component contours, ensuring uniform vacuum and no misalignment during pickup

– Machine Compatibility: Can be customized with corresponding handle interfaces according to your pick-and-place machine model (YAMAHA, FUJI) (NXT, JUKI, PANASONIC, etc.)

– Precision: CNC precision machining, high positioning accuracy, solving the problems of misalignment and material drop in irregularly shaped components.

📌 Applicable Component List (Customizable nozzles available)

– Various Connectors: Pin headers, female headers, board-to-board connectors

– Power Devices: TO220, TO247 packaged transistors/MOSFETs

– Switches: SMD tactile switches, toggle switches

– LED Devices: Square LEDs, COB, irregularly shaped LEDs

– Other Non-standard Parts: Plastic parts, magnetic rings, transformers, terminals, shielding covers, etc. **All irregularly shaped components that standard nozzles cannot pick up**

📋 Customization Required Information (for order placement)

1. Pick-and-place machine brand and model (determines nozzle handle interface)

2. Component photos + dimension drawings

3. Component material, thickness, weight, and whether it is susceptible to damage from pressure

4. Pickup location (specified pickup area)

5. Head material requirements (rubber) (PU/Ceramic)
