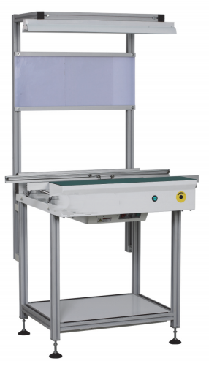

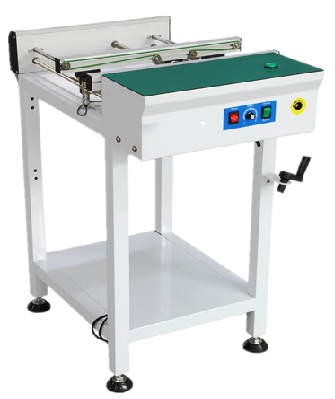

Basic linking conveyor
Description
This unit is used as a visual inspection station for operators between SMT machines or board hand unit to link the machines.
Features
Modular design, PLC controlled Stability enhanced by heavy design Worktable included by default Smooth and parallel width adjustment (stainless steel screws) Different lengths available upon request Muli‐segment concept available upon request Automatic/Manual modes Variable speed control Inspection button SMEMA compatable Conveyor height 900±20mm
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Remark |
|
LCX-350C/LCX-350C-L |
500*676*900 | 50*50-445*350 | 50KG/55KG | no Lighting/with Lighting |
|
LCX-460C/LCX-460C-L |
500*786*900 | 50*50-460*460 | 65KG/70KG |
no Lighting/with Lighting |
|
LCX-350D/LCX-350D-L |
1000*676*900 | 50*50-445*350 | 75KG/80KG |
no Lighting/with Lighting |
| LCX-460D/LCX-460D-L |
1000*786*900 |
50*50-460*460 |
90KG/95KG |
no Lighting/with Lighting |
Options
Anti-dust Covers Touch screen High-Clearance on request Cooling fans on top/bottom for after-reflow Light system for better inspection Support for Monitor Shelf with ESD component boxes Motorized/Automatic width adjustment Choice of different belt width and chain transport system Mechanical stopper Foot pedal pass control Narrow footprint With bottom cabinet

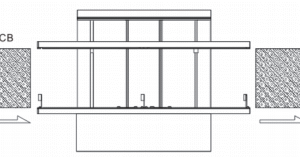

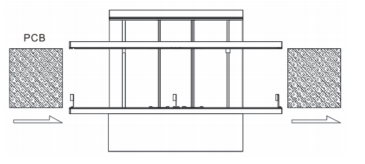

Schematic
Share to:
Description
This unit is used as a visual inspection station for operators between SMT machines or board hand unit to link the machines.
Features
Modular design, PLC controlled Stability enhanced by heavy design Worktable included by default Smooth and parallel width adjustment (stainless steel screws) Different lengths available upon request Muli‐segment concept available upon request Automatic/Manual modes Variable speed control Inspection button SMEMA compatable Conveyor height 900±20mm
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Remark |
|
LCX-350C/LCX-350C-L |
500*676*900 | 50*50-445*350 | 50KG/55KG | no Lighting/with Lighting |
|
LCX-460C/LCX-460C-L |
500*786*900 | 50*50-460*460 | 65KG/70KG |
no Lighting/with Lighting |
|
LCX-350D/LCX-350D-L |
1000*676*900 | 50*50-445*350 | 75KG/80KG |
no Lighting/with Lighting |
| LCX-460D/LCX-460D-L |
1000*786*900 |
50*50-460*460 |
90KG/95KG |
no Lighting/with Lighting |
Options
Anti-dust Covers Touch screen High-Clearance on request Cooling fans on top/bottom for after-reflow Light system for better inspection Support for Monitor Shelf with ESD component boxes Motorized/Automatic width adjustment Choice of different belt width and chain transport system Mechanical stopper Foot pedal pass control Narrow footprint With bottom cabinet

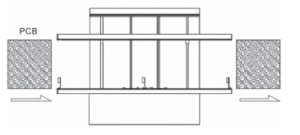

Schematic
