Basic dual rail linking conveyor
Basic dual rail linking conveyor
Board handing system conveyor serial

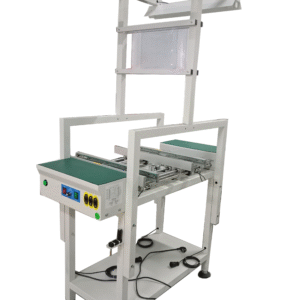

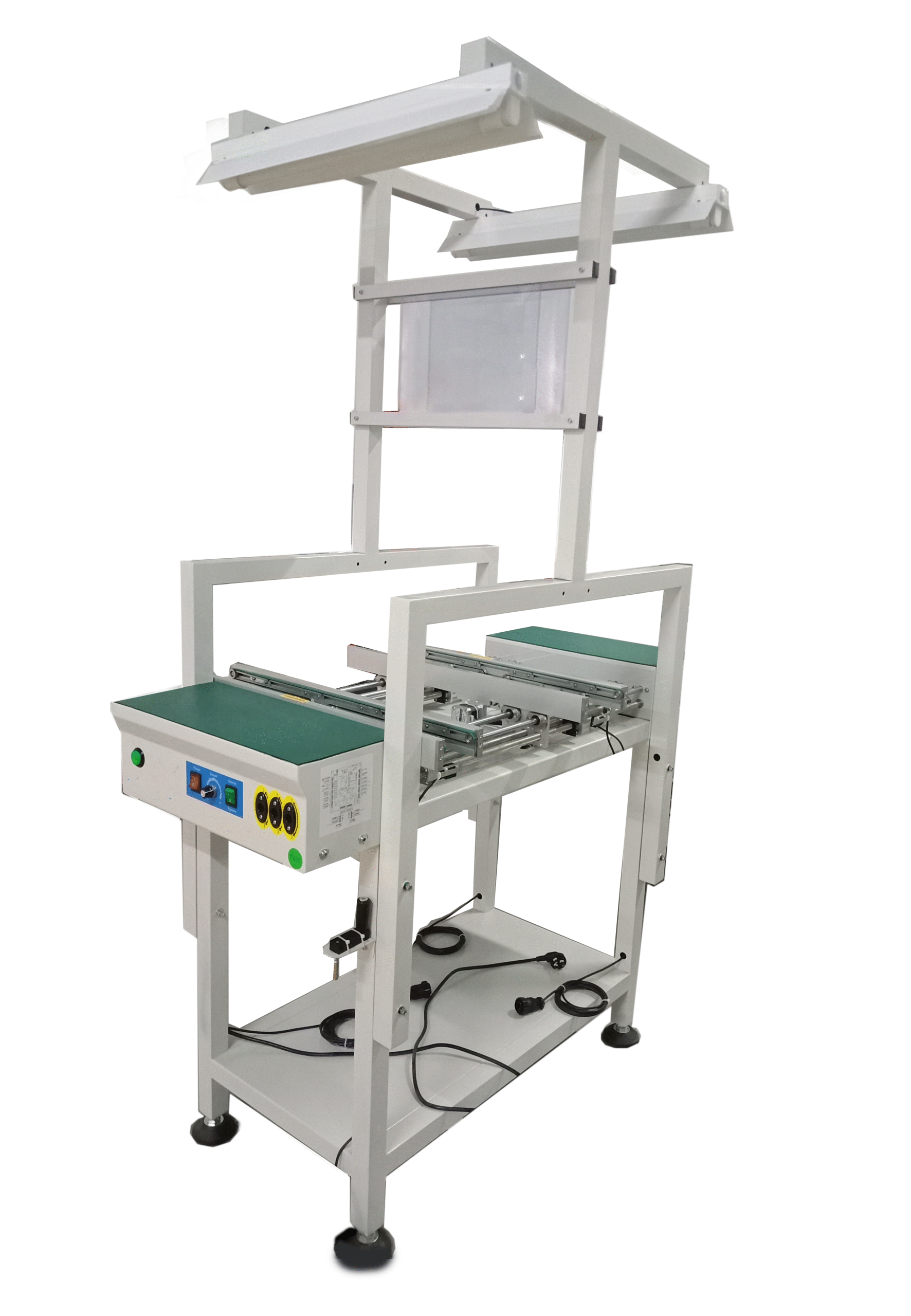

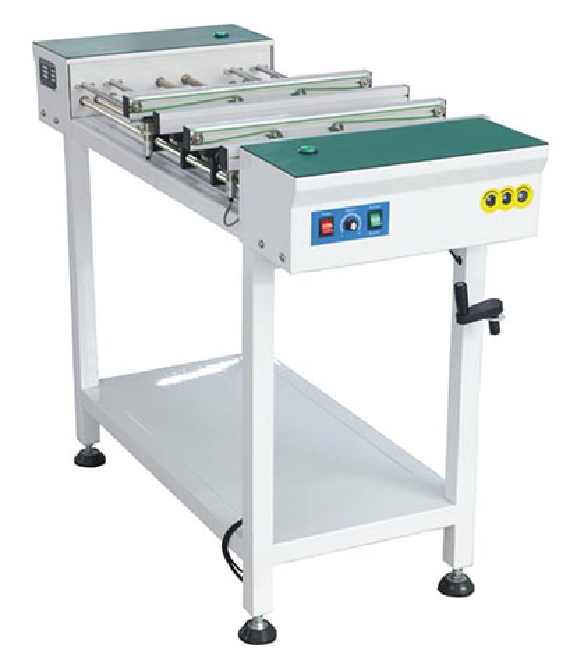

Description
This unit is used to link between SMD machines or board handling units in dual rail PCB assembly lines.
Features
Modular design Stability enhanced by ‘robust design’ Ergonomically designed arm rest Smooth and parallel width adjustment Width adjustment for individual track can be independently controlled (optional) Inspection Mode (optional) Two independently controlled belt segment Multi-zone concept available upon request Different lengths available upon request SMEMA compatible
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Remark |
|
LCX-350C |
500*1046*900 | 50*50-330*250 | 80KG | no Lighting |
| LCX-350C | 520*1046*900 | 50*50-330*250 | 90KG |
with Lighting |
| LCX-350D | 1000*1046*900 | 50*50-330*250 | 95KG |
no Lighting |

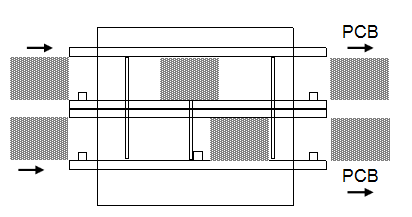

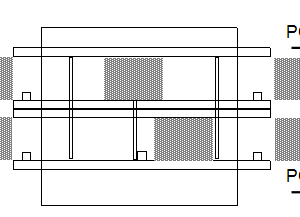

Schematic
