Auto Pin Terminal Insertion Machine
This machine automatically cuts various types of metal coiled terminals into individual terminals. A servo-driven cam mechanism precisely and efficiently inserts the terminals into the PCB, ensuring a secure connection between the terminals and the PCB. The system offers reliable performance and comprehensive monitoring, programming, diagnostic, and operation functions, enabling intelligent production.
1. A CCD sensor quickly captures the position of the socket.
2. An optional fully automatic loading and unloading mechanism enables online operation.
3. A high-definition CCD industrial camera automatically calibrates the socket position.
4. The machine utilizes a cam mechanism for high speed, efficiency, and stability.
Share to:

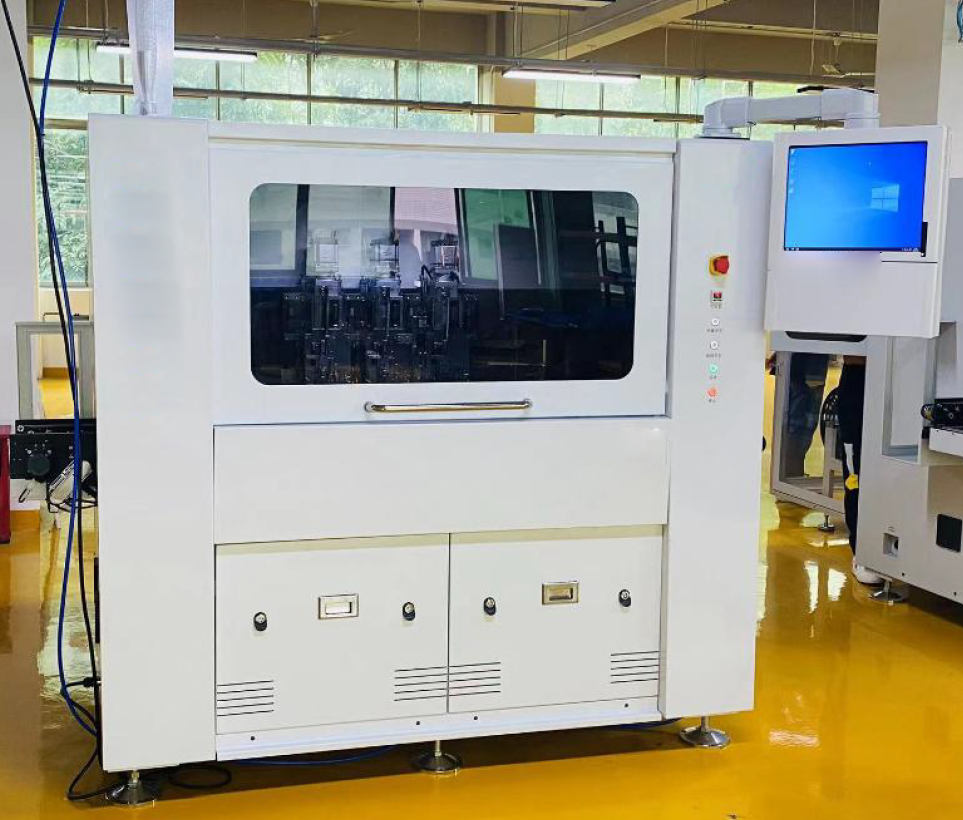

Auto Pin Terminal Insertion Machine
Machine Description:

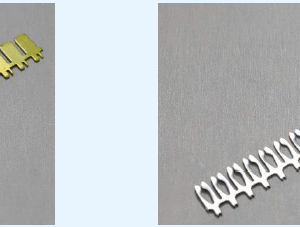

This machine automatically cuts various types of metal coiled terminals into individual terminals. A servo-driven cam mechanism precisely and efficiently inserts the terminals into the PCB, ensuring a secure connection between the terminals and the PCB. The system offers reliable performance and comprehensive monitoring, programming, diagnostic, and operation functions, enabling intelligent production.
1. A CCD sensor quickly captures the position of the socket.
2. An optional fully automatic loading and unloading mechanism enables online operation.
3. A high-definition CCD industrial camera automatically calibrates the socket position.
4. The machine utilizes a cam mechanism for high speed, efficiency, and stability.

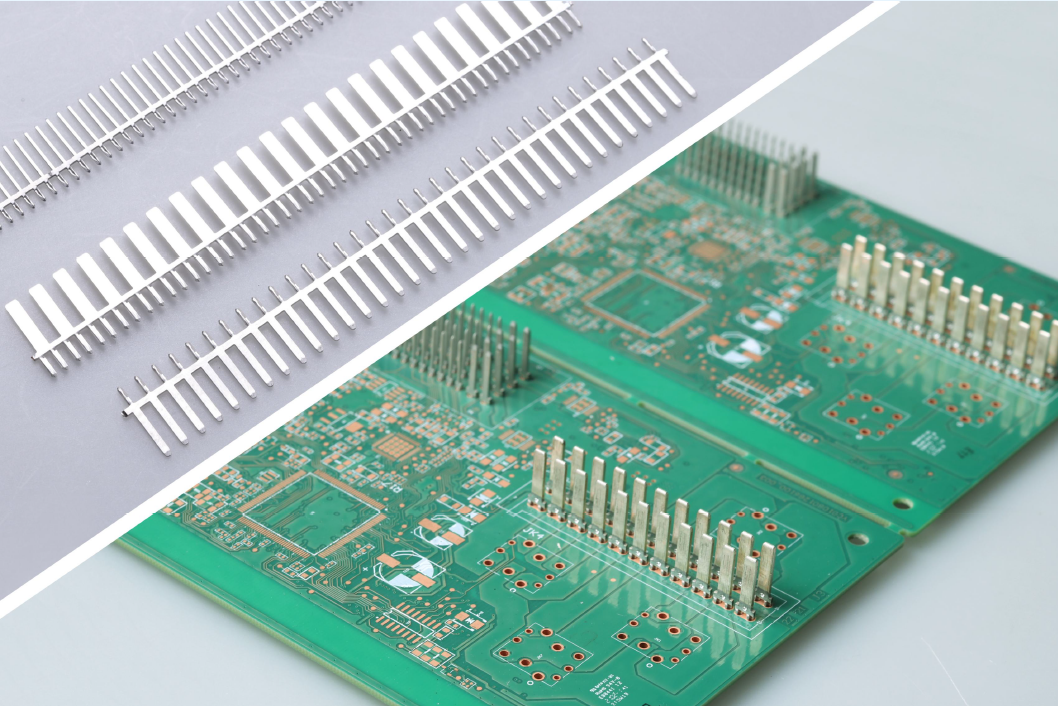

Applicable scenario 1 car electrical box/fuse box
Applicable scenario 2 Press fit

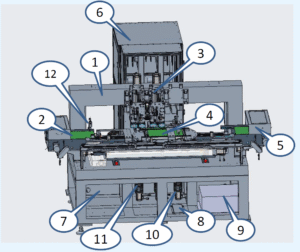

Overall framework

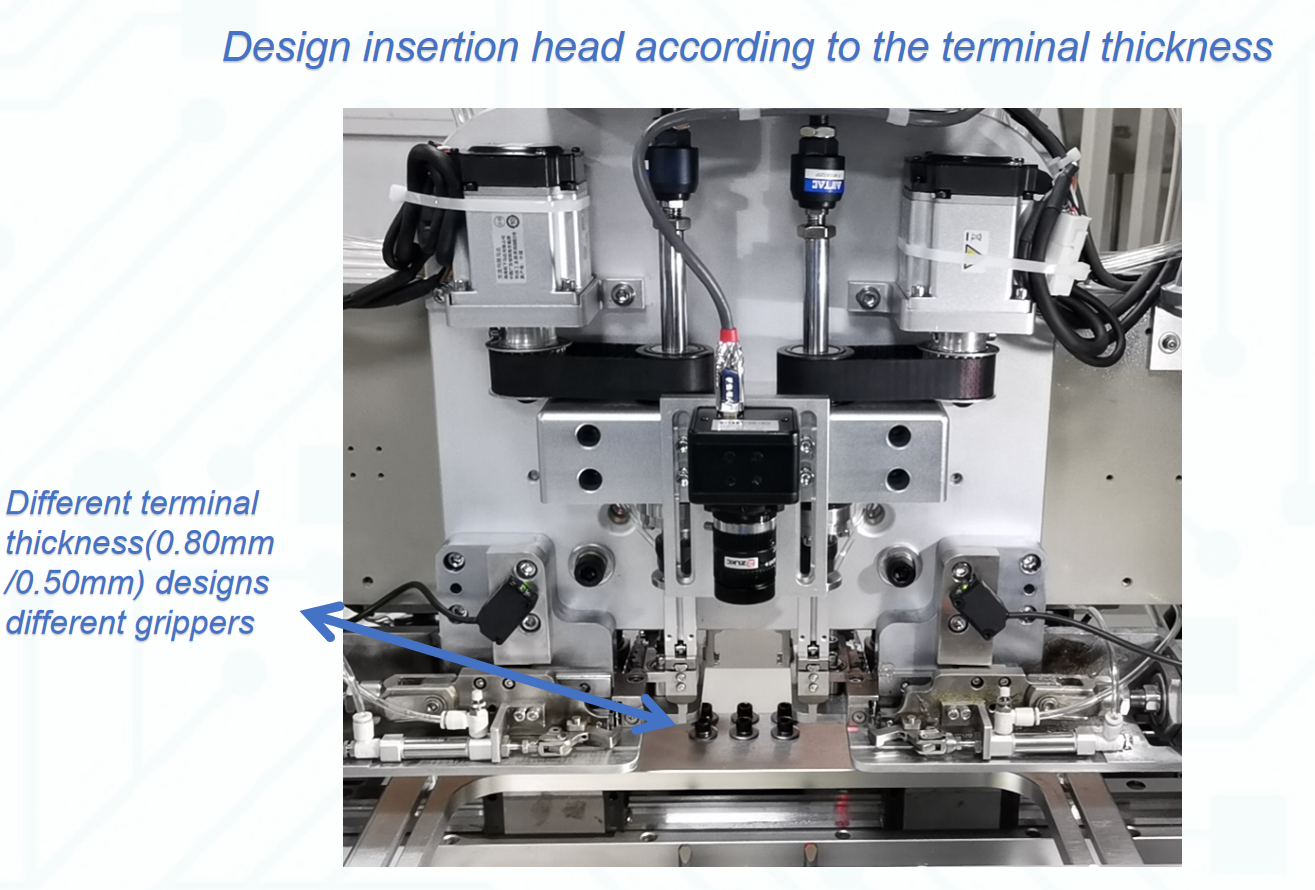

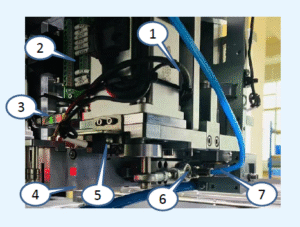

head

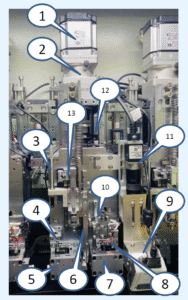

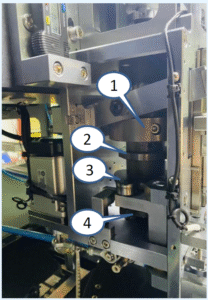

Cam mechanism

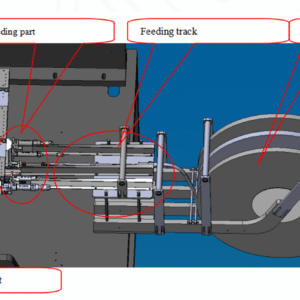

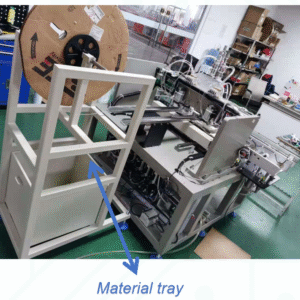

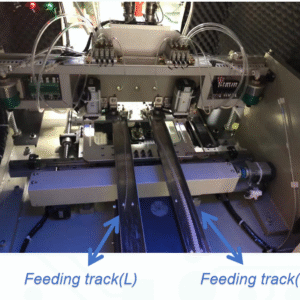

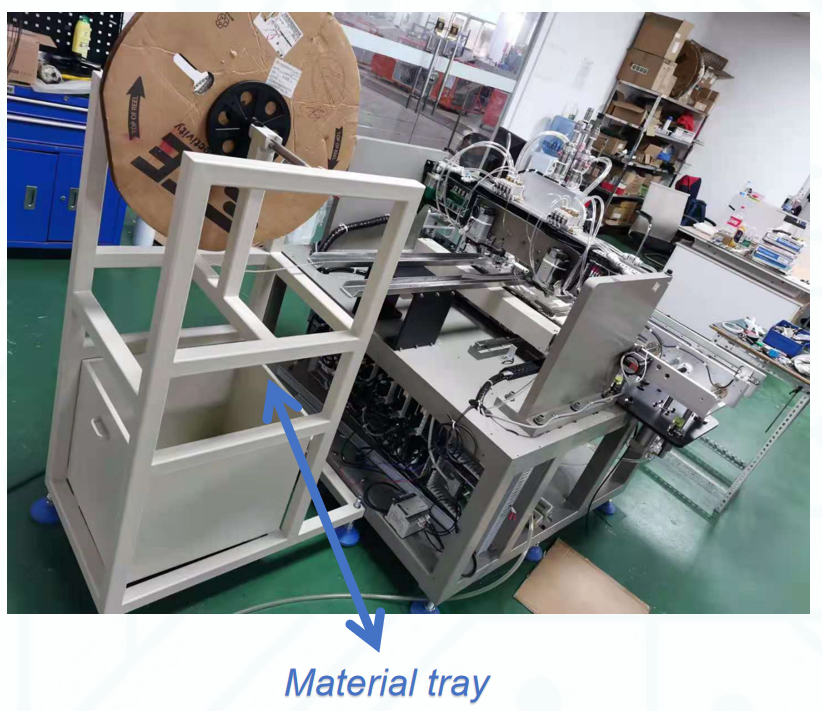

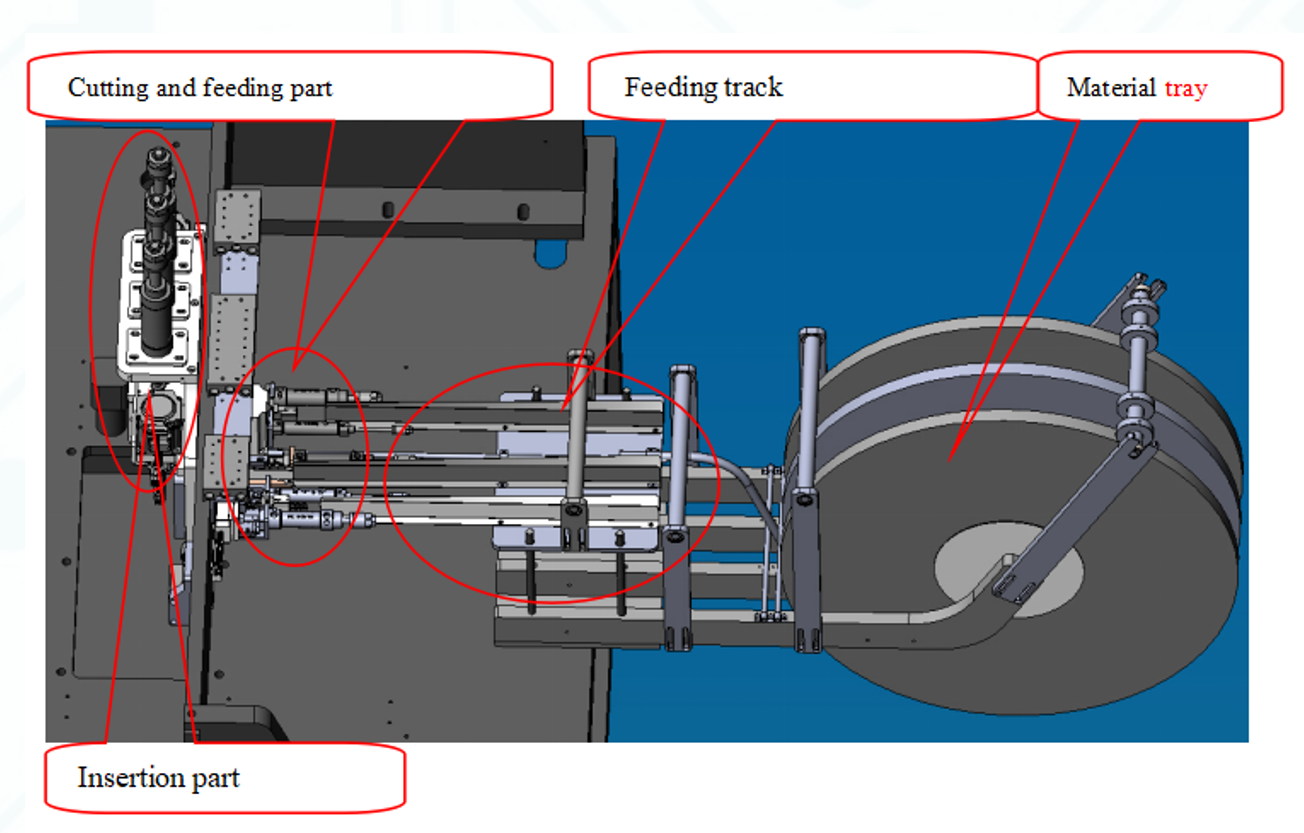

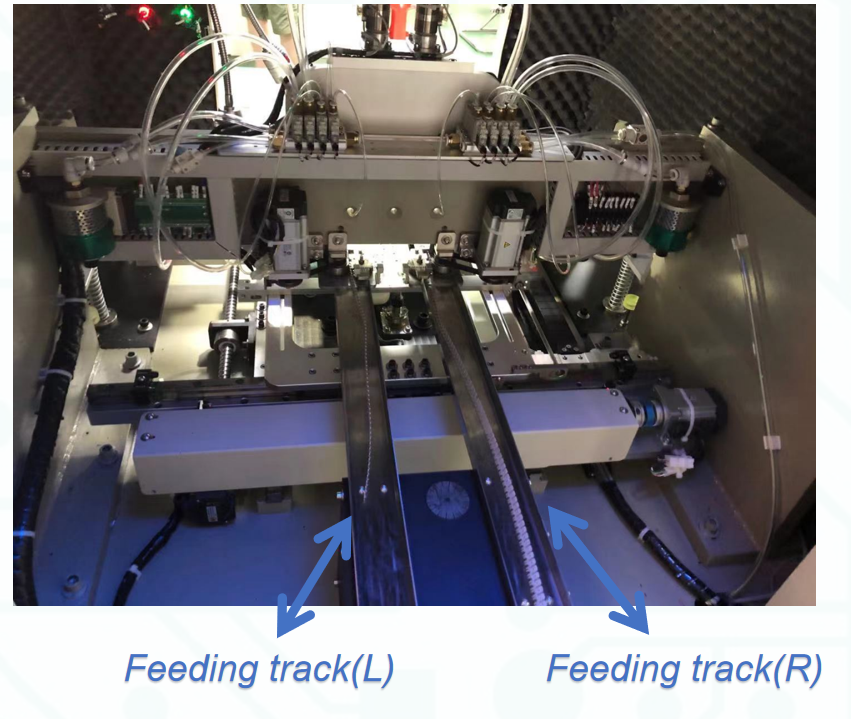

Feeding mechanism

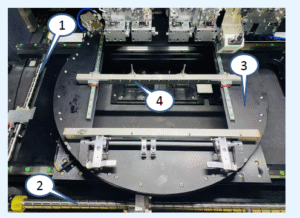

Platform Organization

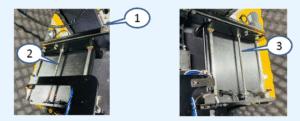

PCB in and out mechanism

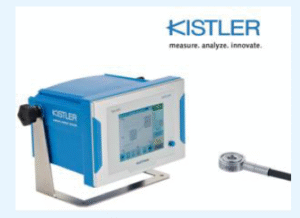

Insertion force detection (optional)

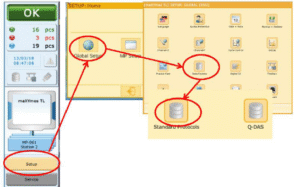

Main interface
Monitors and sensors
Various pressure storage methods

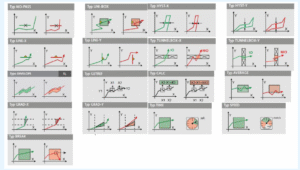

Supports various curve measurement methods
Insertion depth monitoring (optional)

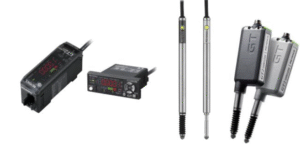

Keyence (Japan) or Grating ruler
The device is equipped with an insertion depth sensor. This sensor, combined with pressure monitoring, monitors the PIN insertion process in real time, ensuring optimal insertion quality.
