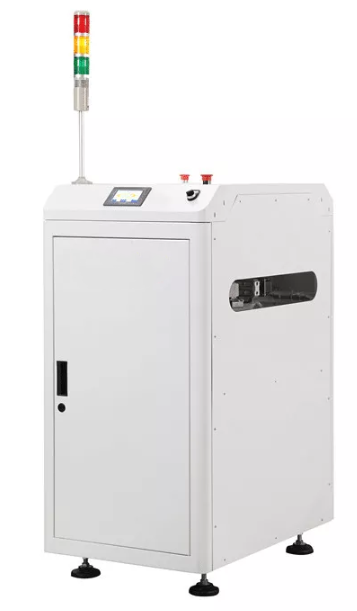

90 degree turning conveyor
90 degree turning conveyor
Board handing system conveyor serial
Description
This unit is used to redirect PCBs in a production line,usually used for two combined one assembly line,L or U type SMT assembly line.
Features
User friendly ‘soft-touch’ LED control membrance control panel
Enclosed design with built-in torque limiter ensures highest level of safety
Top cover can be opened for easy access to hardware during maintance
Parallel and smooth width adjustment (leadscrew)
Steady and precise scaling (retractable motor)
Minimize transmission clearance clearance between conveyor
Different sizes available upon request
PCB traffic flows can be customised
SMEMA compatible
Specifications
|
Model |
Dimension (L*W*H.MM) | Effection PCB size | Weight(KG) | Remark |
|
LBI330 |
500*563*1200 | 50*50-330*250 | 150KG | |
| LCN330 | 580*643*1200 | 50*50-400*330 | 170KG |

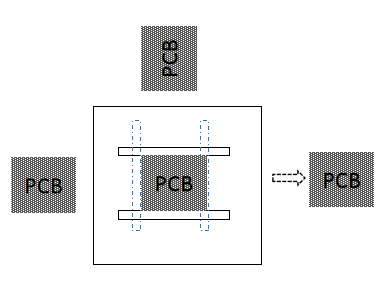

Schematic
