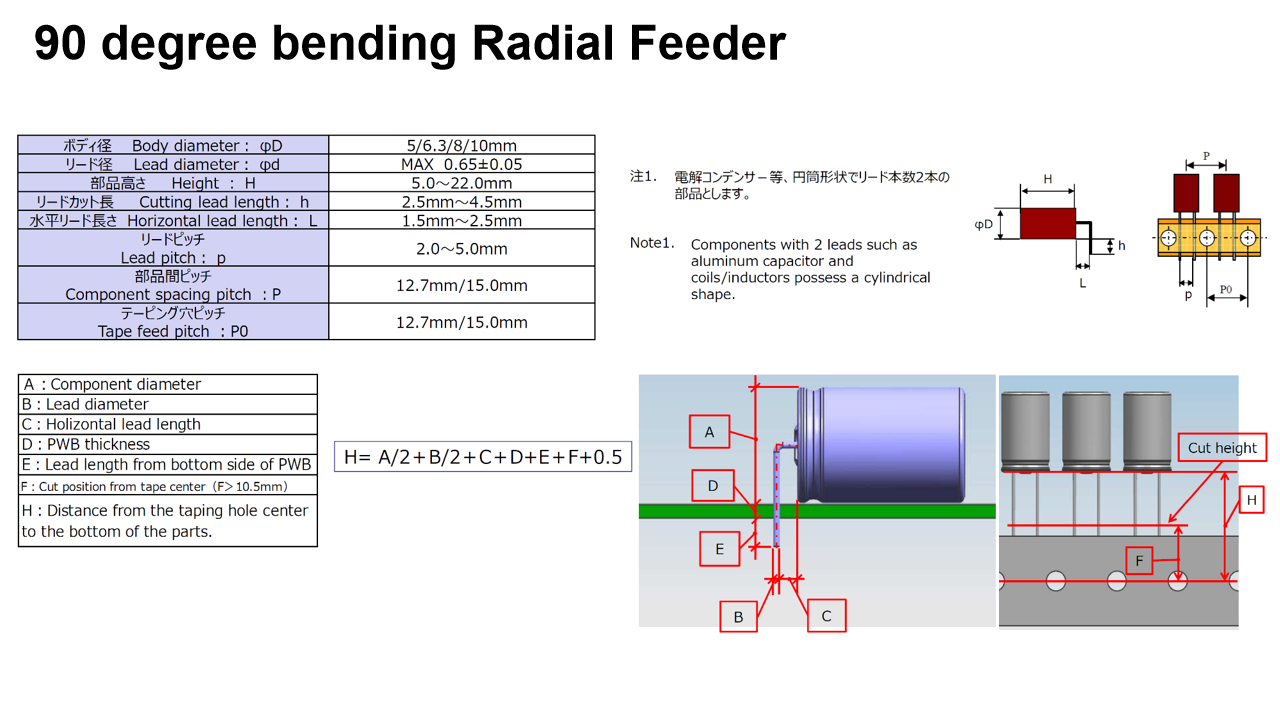

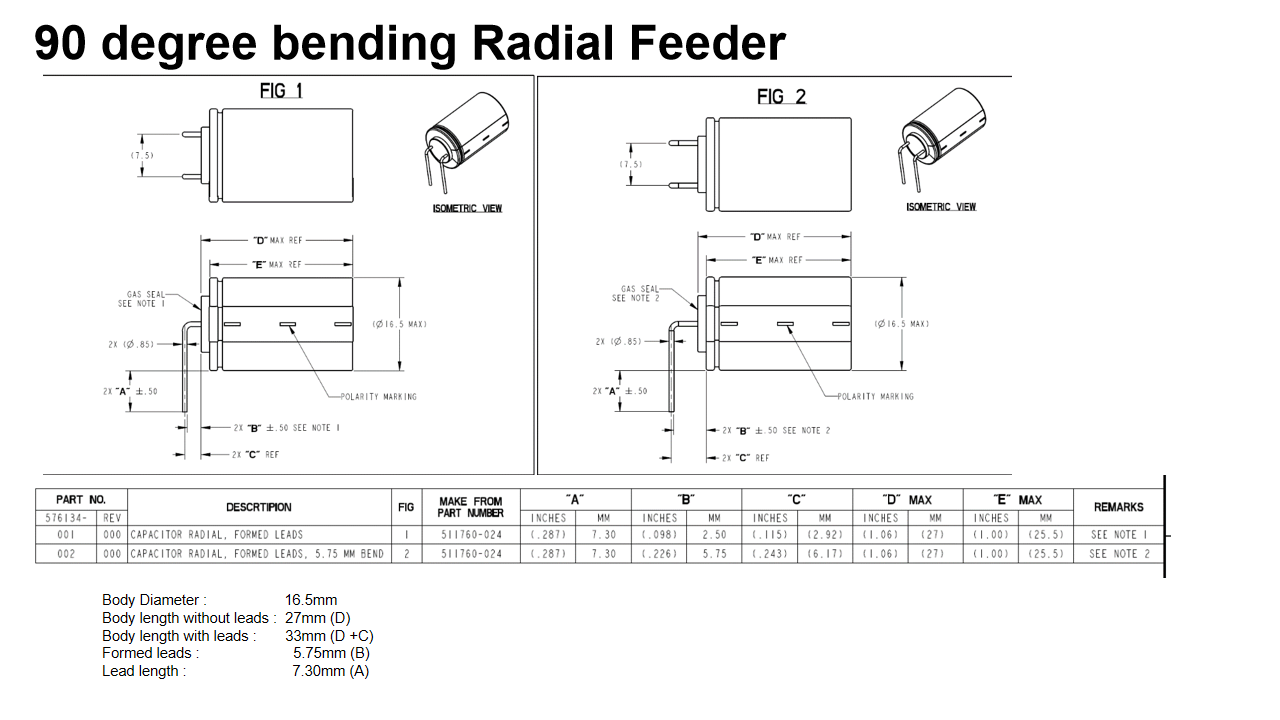

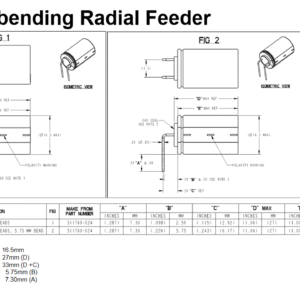

90 degree bending Radial Feeder
An Introduction to the SMT Bending Radial Feeder
In the highly automated world of Surface Mount Technology (SMT), component feeders are the unsung heroes that ensure a continuous and reliable flow of parts to the placement machine. While tape-and-reel feeders handle the majority of components, a significant category of parts requires a specialized handling solution: the Bending Radial Feeder.
Overview and Purpose
A Bending Radial Feeder is an automated feeding system designed specifically for axial lead components. These components, such as resistors, capacitors, diodes, and LEDs, have wire leads protruding from each end. In traditional through-hole assembly, these leads are inserted into holes on a PCB. However, for certain SMT applications, the leads must be formed or “bent” into a specific shape to sit correctly on surface mount pads.
The primary function of the Bending Radial Feeder is to:
Accept axial components from a bulk stick or magazine.
Form the Leads by precisely bending them to a pre-defined shape (e.g., gull-wing).
Present the now surface-mount-ready component to the pick-up location for the SMT placement head.
This process effectively converts a through-hole component into one that can be placed using standard SMT processes.
Key Components and Mechanism
A typical Bending Radial Feeder consists of several key subsystems:
Component Magazine/Stick Feeder: A channel that holds a stack of axial components and advances them one by one.
Lead Forming Mechanism: The core of the feeder. This system uses a set of precision anvils and forming tools to grip the component body and bend its leads to the exact required dimensions and shape. The bend radius, span, and standoff height are all critical and adjustable.
Cutting Mechanism (Optional): Some advanced feeders include a cutting unit to trim the leads to the precise length after forming, ensuring consistency and preventing tombstoning or misplacement.
Pick-and-Place Interface: A staging area where the newly formed component is held securely, oriented correctly, and presented for the vacuum nozzle of the SMT pick-and-place machine.
Advantages and Benefits
The integration of Bending Radial Feeders into an SMT line offers significant advantages:
Process Automation: Eliminates the need for manual pre-forming of components or secondary operations, drastically increasing throughput and reducing labor costs.
High Placement Accuracy: Precisely formed leads ensure the component sits correctly on the solder paste, leading to higher First-Pass Yield and reducing defects like soldering bridges or open connections.
Flexibility: These feeders can be quickly adjusted or tooled to handle different component body sizes and lead-forming requirements, making them ideal for high-mix, low-to-medium volume production environments.
Space Optimization on PCB: By using formed axial components, designers can utilize board space more efficiently compared to traditional through-hole parts, which require drilled holes.
Improved Reliability: Automated forming ensures consistency that cannot be matched by manual processes, leading to more robust and reliable solder joints.
Typical Applications
Bending Radial Feeders are indispensable in scenarios where:
Large or High-Power Components are needed, as many of these are still primarily manufactured in axial form factors (e.g., large electrolytic capacitors, power resistors).
Legacy Components must be used in a new, surface-mount design.
Cost-Sensitive Applications where axial components are more economical than their SMD counterparts.
Specialist Components like fuses, certain inductors, or connectors that are only available in axial lead packages.
Conclusion
The SMT Bending Radial Feeder is a critical piece of automation technology that bridges the gap between through-hole component design and modern surface mount assembly. By automating the lead-forming process with precision and reliability, it expands the range of components that can be placed on an SMT line, enhances production efficiency, and contributes significantly to the overall quality and flexibility of electronic manufacturing.
