1.5m LED Vacuum loader
1.5m LED Vacuum loader
Board handing system loader serial
Description
This unit is used for loading the bare LEDs automatically by vacuum to the production line
Features
Applies to the PLC + touch screen control, easy to operate
Enclosed design ensures highest leavel of safety
Smooth and parallel width adjustment (leadscrew)
Smooth and accurate translation (stepping motor)
Minimize the transmission gap between conveyors
Adjust the position of the suction nozzle to ensure the clamping of LED board
SMEMA compatible
Transfer direction:L to R. PCB edge support:10mm
Belt speed: 0.5-20m/min adjustable
Air supply& consumption: 4-6 bar, 30 Itr/min Max
Power supply:110V /220V, 50 Hz/ 1 Ph
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | PCB storage |
|
LVL330 |
1700*1200*1280 | 50*50-1300*330 | 130KG |
200mm or specify |

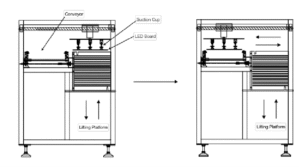

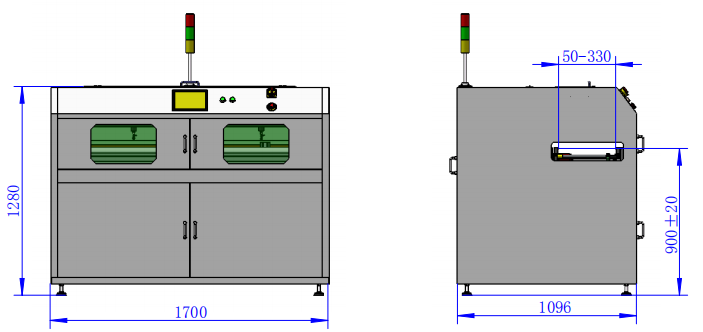

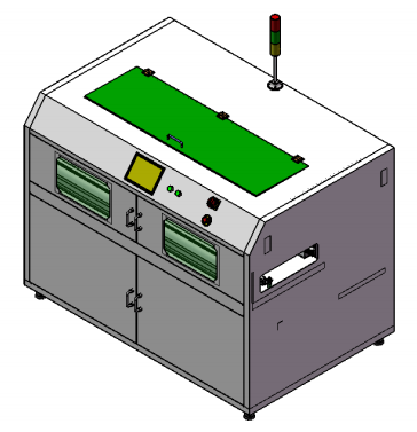

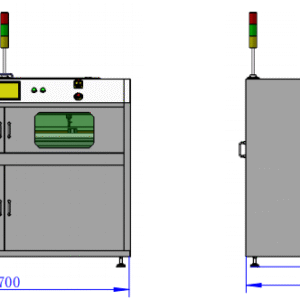

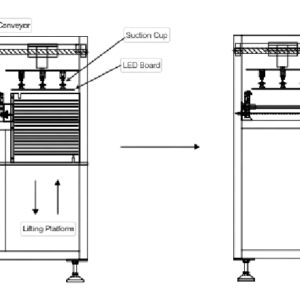

Schematic&Structure
Share to:
1.5m LED Vacuum loader
Board handing system loader serial
Description
This unit is used for loading the bare LEDs automatically by vacuum to the production line
Features
Applies to the PLC + touch screen control, easy to operate
Enclosed design ensures highest leavel of safety
Smooth and parallel width adjustment (leadscrew)
Smooth and accurate translation (stepping motor)
Minimize the transmission gap between conveyors
Adjust the position of the suction nozzle to ensure the clamping of LED board
SMEMA compatible
Transfer direction:L to R. PCB edge support:10mm
Belt speed: 0.5-20m/min adjustable
Air supply& consumption: 4-6 bar, 30 Itr/min Max
Power supply:110V /220V, 50 Hz/ 1 Ph
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | PCB storage |
|
LVL330 |
1700*1200*1280 | 50*50-1300*330 | 130KG |
200mm or specify |
Schematic&Structure
