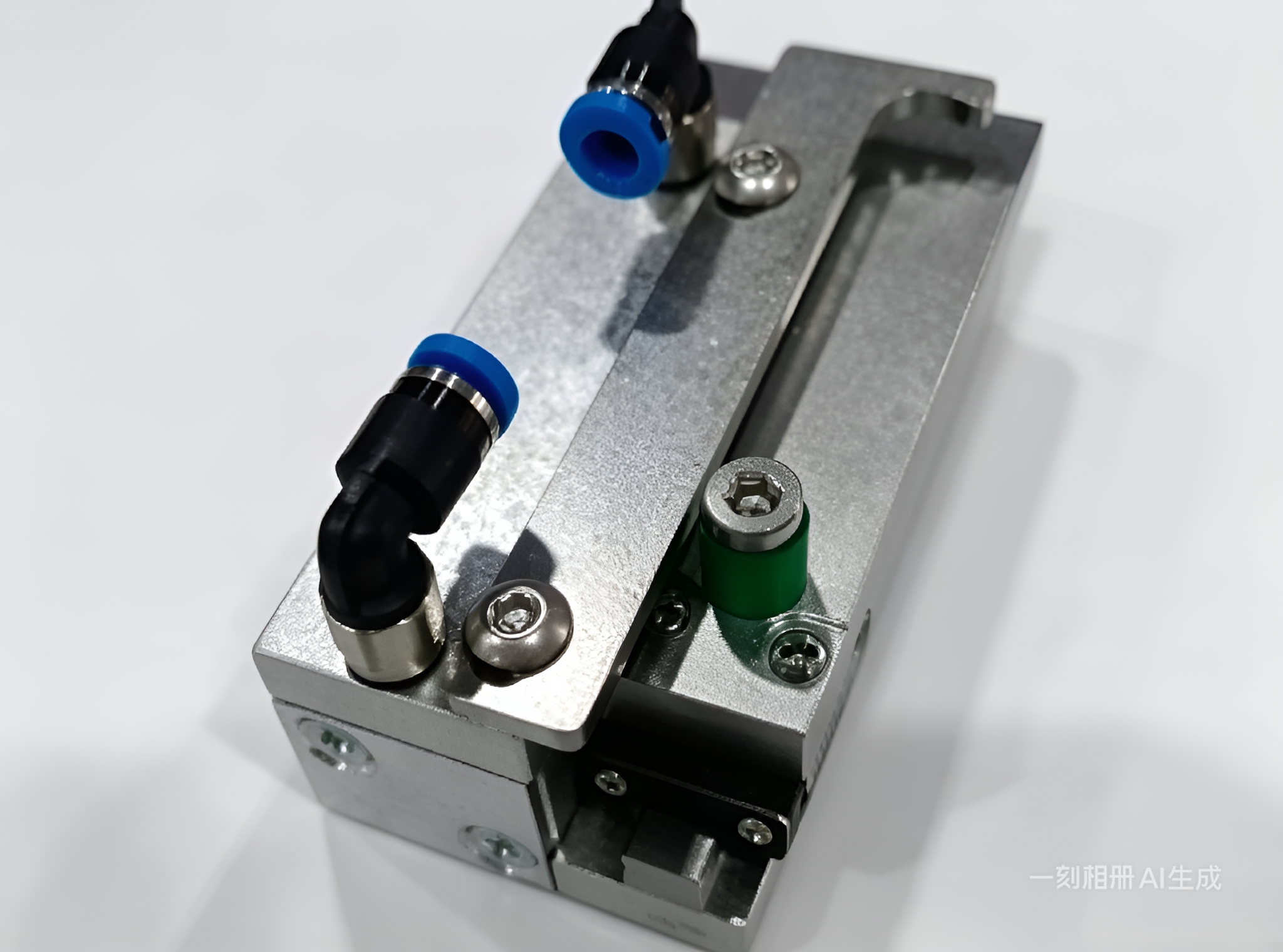

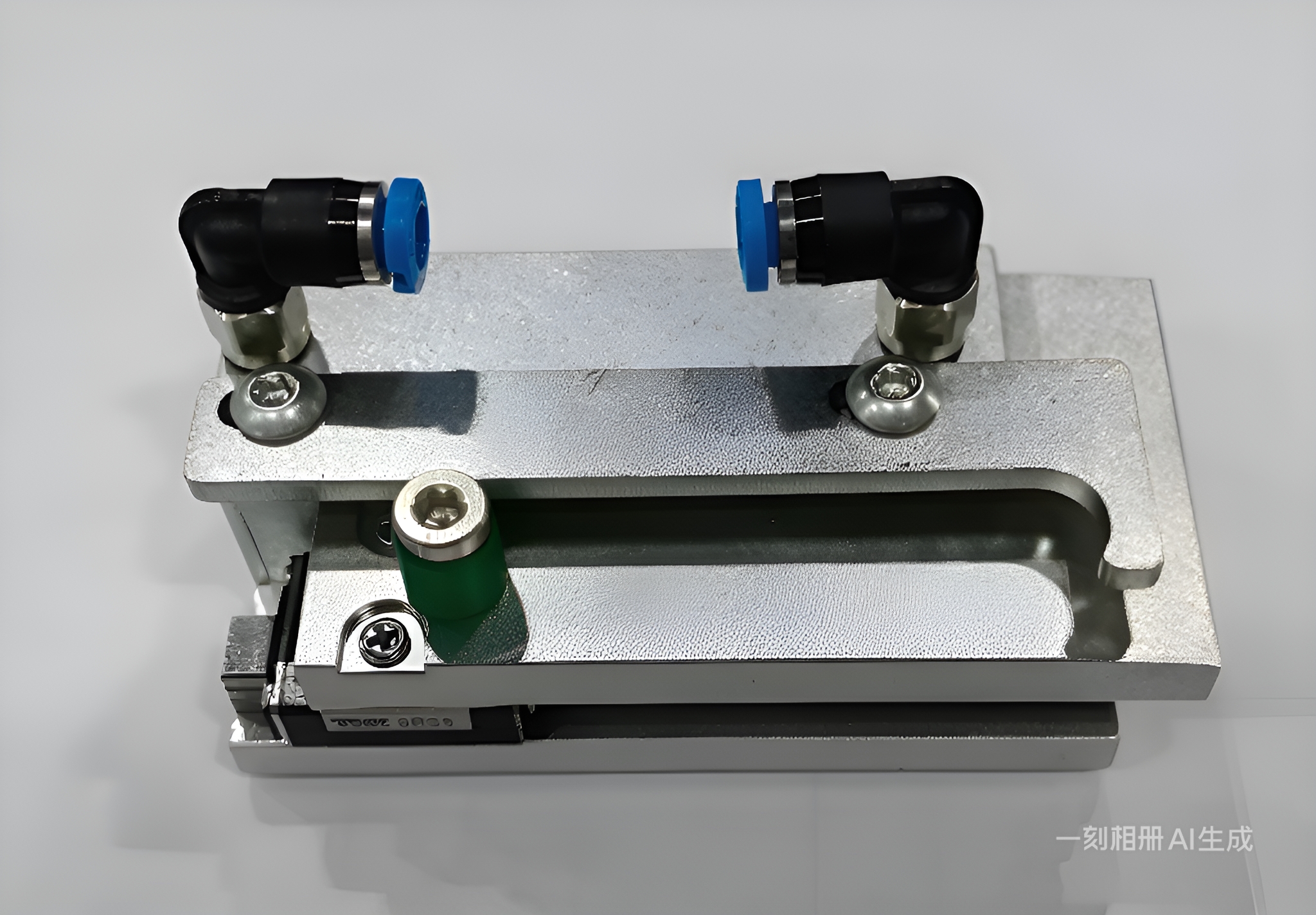

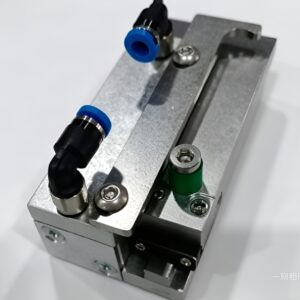

03084034‑07 Stopper 25 SX Pneumatic CPL. PCB Stop Cylinder for ASM SIPLACE SX1 SX2 SX3
Original Part Number/Barcode: 03084034 (Some may be marked as 03084034-06 or 03084034-05)
Product Name: SIEMENS STOPPER 25 SX PNEUMATIC CPL
Applicable Equipment: Siemens/ASM SIPLACE pick-and-place machines (such as SX series, etc.)
Main Function: Installed at the production line’s guideway station, it serves as a PCB board stopping and positioning mechanism. When the cylinder extends, it precisely stops the circuit board to facilitate placement or scanning; after completion, it retracts to release the board.
# 03084034 (ASM/Siemens ASMPT) Stopper Cylinder
**Complete Part Number: 03084034-07**
– Name: Stopper 25 SX Pneumatic CPL. PCB Track Stop/Stop Cylinder Assembly (Siemens Pick and Place Machine Track)
– Applicable Models: **ASM SIPLACE SX Series Pick and Place Machines (SX1/SX2/SX3)**, track PCB board stopping cylinder, used to stop the PCB board from entering and position the PCB substrate
– Specifications: Cylinder diameter 25mm, complete assembly, including cylinder body, stop block, mounting base, not a single cylinder component
– Aliases: Stopper cylinder, Stopper cylinder, Track stop cylinder
### Common Fault Phenomena
1. PCB cannot be stopped, it passes directly;
2. Cylinder extension is weak, air leakage;
3. 4. Block return jams, causing a plate jam;
5. Magnetic switch signal loss, reporting a track fault.
